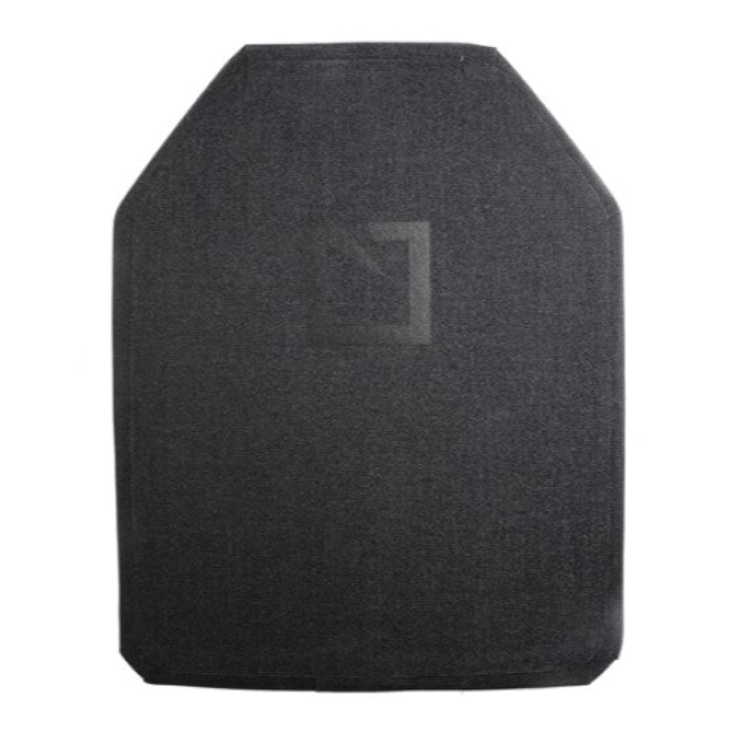

4601 LEVEL IV (Multi Curve)

Advanced Spectra® materials. Highly durable, water resistant polyurethane coated CORDURA® fabric finish.

Other size plates available upon request.  Plates sold INDIVIDUALLY.

**DUE TO THE LIFE-SAVING NATURE OF THIS PRODUCT, ALL SALES ARE FINAL**

This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.

SPECIFICATIONS

• 6.4 lb (1.18”) - 10x12 Shooters Cut
• 7.6 lb (1.18") - 10.25x13.25 SAPI Cut
• Made in the USA
• NIJ Certification

• Level IV
• Stand Alone
• Multi-Curve

• Advanced Spectra ® materials
• Highly durable, water resistant polyurethane coated Cordura® fabric finish

LEAD CORE

• 5.56 x 45mm - M193
  Max Velocity 3280 ft/s (1000 m/s)
• 7.62 x 39 mm - M67
  Max Velocity 2410 ft/s (735 m/s)
• 7.62 x 51 mm - M80
  Max Velocity 2810 ft/s (856 m/s)
• 7.62 x 63 mm - JSP
  Max Velocity 2794 ft/s (852 m/s)

MILD STEEL CORE

• 5.56 x 45 mm - M855/SS109
  Max Velocity 3150 ft/s (960 m/s)
• 7.62 x 39 mm - M43
  Max Velocity 2410 ft/s (735 m/s)

• 7.62 x 54R - LPS
  Max Velocity 2832 ft/s (863 m/s)

ARMOR PIERCING CORE

• 7.62 x 39 mm - API
  Max Velocity 2410 ft/s (735 m/s)
• 7.62 x 54R B-32 - API
  Max Velocity 2830 ft/s (863 m/s)
• 7.62 x 51 mm - M61
  Max Velocity 2830 ft/s (863 m/s)
• 7.62 x 63 mm - AP M2
  Max Velocity 2910 ft/s (887 m/s)

ENHANCED PERFORMANCE

• 5.56 x 45mm - M855A1
  Max Velocity 3180 ft/s (969 m/s)
• 7.62 x 51 mm - M80A1
  Max Velocity 3050 ft/s (930 m/s)

MANUFACTURING TOLERANCES

Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to -0.25 in (+0.00 to -6 mm). All weights are ± 5%.

HESCO TESTING PROTOCOL

NIJ Certification of hard armor requires submission of 10” x 12” test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern, after exposure to a stringent conditioning protocol to simulate aging and wear. Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods, as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix at left. Hesco engineers utilize various NIJ-valid shot patterns based on specific product goals such as minimizing plate weight and thickness, plate shape, or meeting end-user specifications. Before conducting independent testing, contact Hesco for specific shot pattern information. Level IV requires one round of 7.62 x 63 mm - M2AP per plate.
