Advanced composite materials. Water resistant polyurethane coated CORDURA® fabric finish.
Other size plates available upon request. Plates sold INDIVIDUALLY.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
SPECIFICATIONS

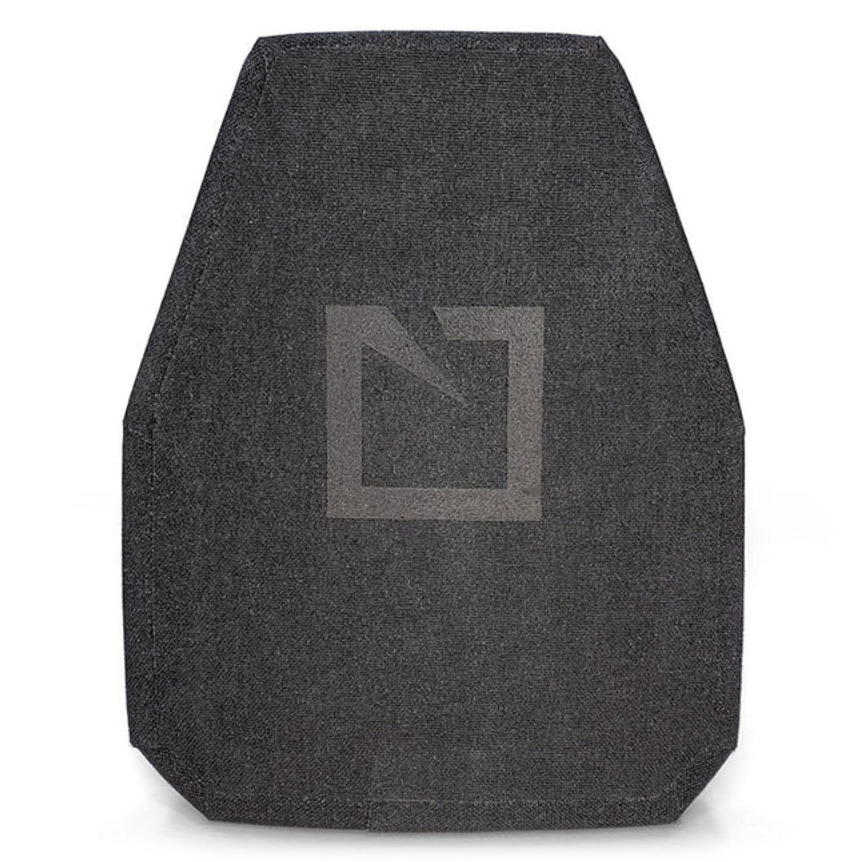

- 7.7 lb (0.83”) - 10x12 Shooters Cut

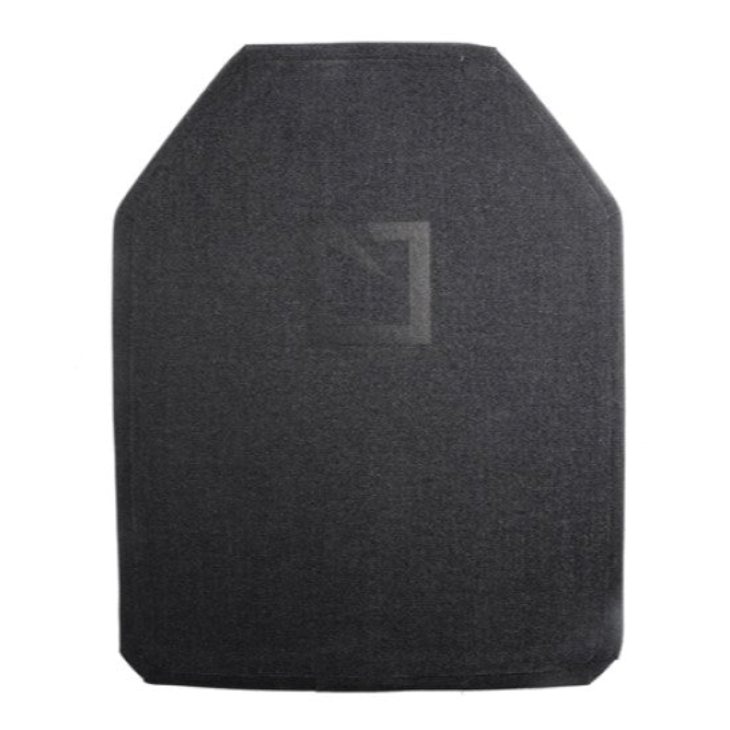

- 9.1 lb (0.83") - 10.25x13.25 SAPI Cut
- Made in the USA
- NIJ certification pending
- NIJ Level IV
- Stand Alone
- Multi-Curve
- Advanced composite materials
- Highly durable, water resistant polyurethane coated Cordura® fabric finish
LEAD CORE
- 5.56 x 45mm - M193
Max Velocity 3280 ft/s (1000 m/s) - 7.62 x 39 mm - M67
Max Velocity 2410 ft/s (735 m/s) - 7.62 x 51 mm - M80
Max Velocity 2810 ft/s (856 m/s) - 7.62 x 63 mm - JSP
Max Velocity 2794 ft/s (852 m/s)
MILD STEEL CORE
- 5.56 x 45 mm - M855/SS109
Max Velocity 3150 ft/s (960 m/s) - 7.62 x 39 mm - M43
Max Velocity 2410 ft/s (735 m/s)
- 7.62 x 54R - LPS
Max Velocity 2832 ft/s (863 m/s) - 5.45 x 39 mm - 7N6
ARMOR PIERCING CORE
- 7.62 x 39 mm - API
Max Velocity 2410 ft/s (735 m/s) - 7.62 x 54R B-32 - API
Max Velocity 2850 ft/s (869 m/s) - 7.62 x 51 mm - M61
Max Velocity 2830 ft/s (863 m/s) - 7.62 x 63 mm - AP M2
Max Velocity 2910 ft/s (887 m/s)
ENHANCED PERFORMANCE
- 5.56 x 45mm - M855A1
Max Velocity 3180 ft/s (969 m/s)
MANUFACTURING TOLERANCES
Thickness dimensions are ± 1/8 in (± 3 mm). Width and length dimensions are +0.00 to -0.25 in (+0.00 to -6 mm). All weights are ± 5%.
HESCO TESTING PROTOCOL
NIJ Certification of hard armor requires submission of 10” x 12” test plates which must demonstrate the ability to defeat specific rounds tested to a valid NIJ shot pattern, after exposure to a stringent conditioning protocol to simulate aging and wear. Hesco holds itself to a higher standard by publishing the minimum number of shots that each size plate can be expected to defeat under similar NIJ testing methods, as well as listing many additional threats not addressed under the NIJ Certification process. The minimum number of shots are shown in the Threat Performance Matrix at left. Hesco engineers utilize various NIJ-valid shot patterns based on specific product goals such as minimizing plate weight and thickness, plate shape, or meeting end-user specifications. Before conducting independent testing, contact Hesco for specific shot pattern information. Level IV requires one round of 7.62 x 63 mm - M2AP per plate.
