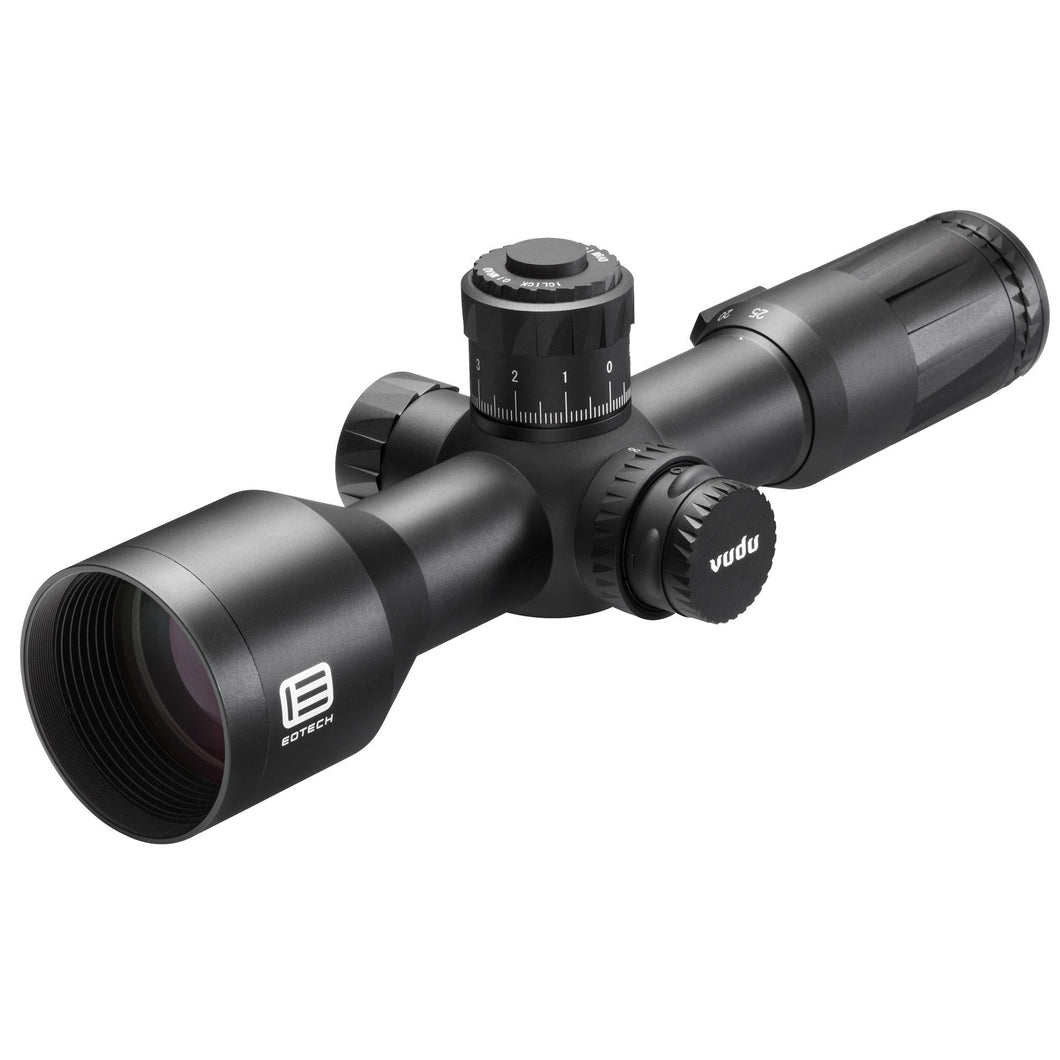

The Vudu 5-25X50 is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market.
This Product is subject to EAR Export Controls. Please visit our EAR page (click here) or Contact Us for more Information.
The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.
RETICLE SPECIFICATIONS:
Vudu MD3 Reticle:
The MD3 is a first focal plane MRAD-based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The stadia lines are pulled back from the illuminated center aiming dot for improved long-range accuracy.
Vudu MD4 Reticle:
The MD4 reticle is based on the Minute of Angle, or MOA, angle of measurement. With a known target size, this system allows the shooter to use angle ratios to determine distance of target with reliable accuracy. The MD4 reticle is 0.25 MOA per click adjustments that subtend to .25" at 100 yards.
All EOTECH Product are designed to give many years of trouble-free performance and reliability. Nonetheless, failures do sometimes occur even with equipment as well-built as EOTECH’s. Therefore, please read the Warranty information below carefully, because it contains important information, which in the event of such a failure, may be very helpful to you.
If after reading EOTECH’s Warranty thoroughly and you have any questions, please do not hesitate to contact EOTECH directly.
Please also note, that if your Product ever does require Warranty service, obtaining such service will be much easier if you have read the Warranty that applies to your product and have completed the Product Registration.
TECHNICAL SPECIFICATIONS:
- Overall Length: 11.2" (285 mm)
- Weight: 29.5 oz (835 g)
- Magnification: 5-25X
- Tube Diameter: 34 mm
- Objective Diameter: 50 mm
- Power Source: CR2032
- Eye Relief: 5X: 2.96-3.71" (75-94 mm) / 25X: 3.27-3.63" (83-92 mm)
- Field-of-View @ 100 Yards: 5X: 23.3 ft (7.1 m) / 25X: 4.7 ft (1.43 m)
-
Country of Origin: Made in Japan
- Vudu® 5-25X50 Rifle Scope
- Operator Manual
- Reticle Manual
- Throw Lever
- Sunshade
- Lens Cleaning Cloth
- Battery
- Zero Stop Wrench
