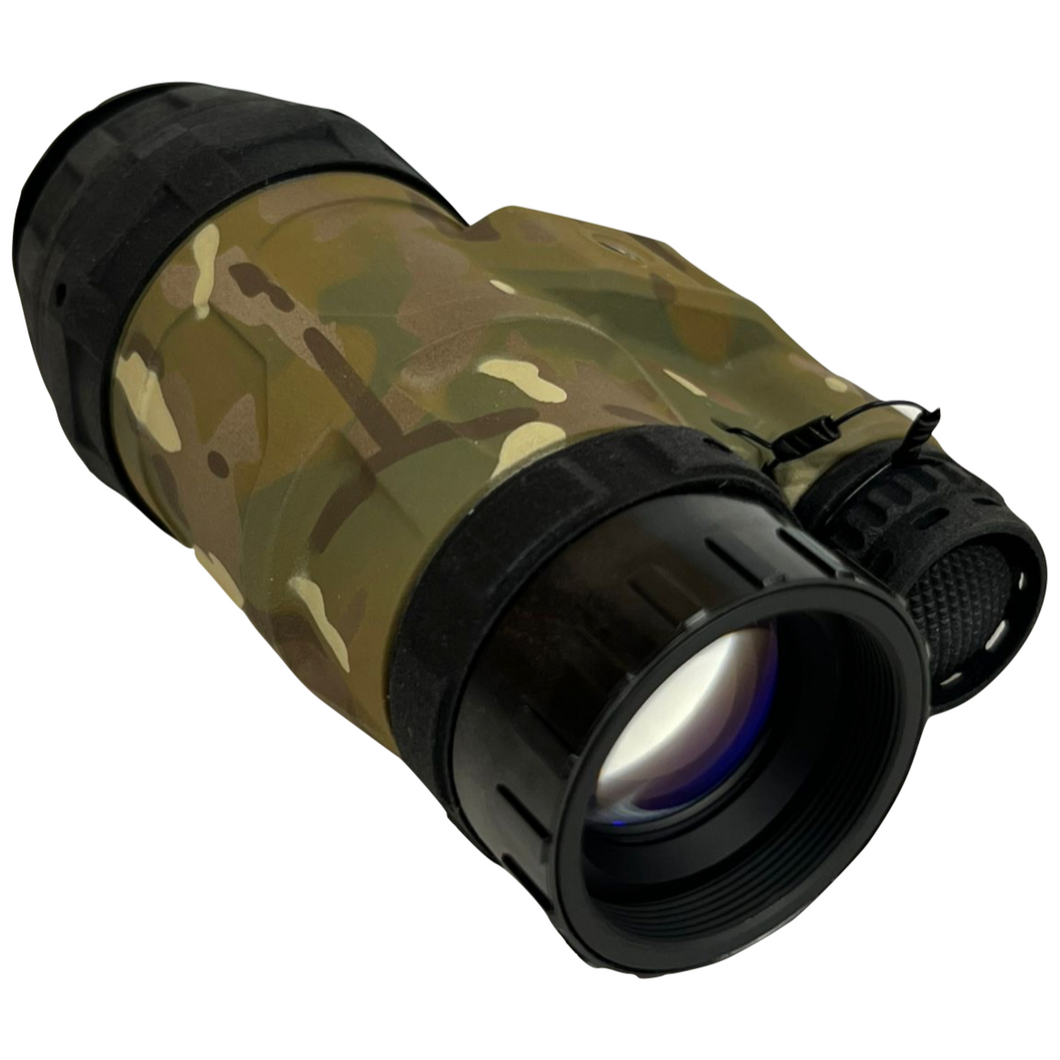

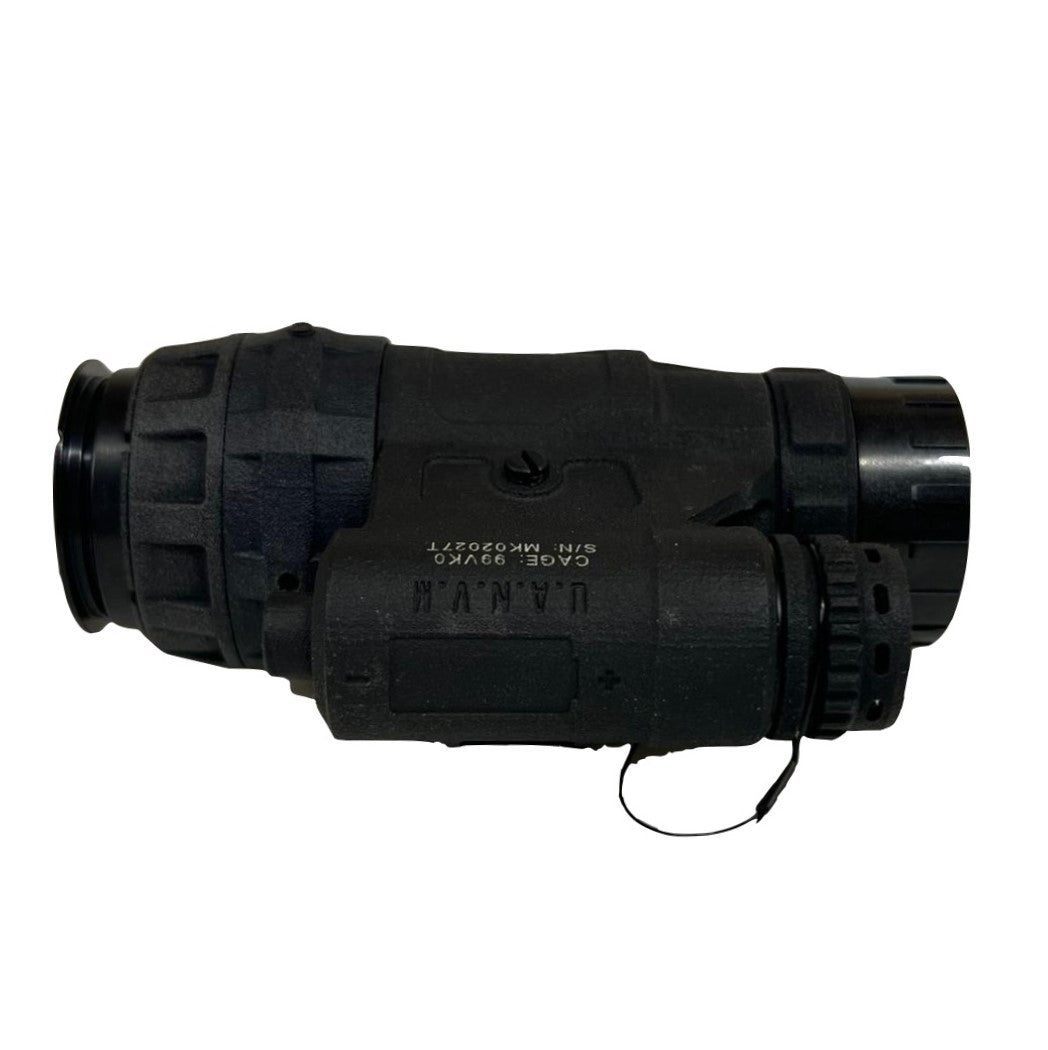

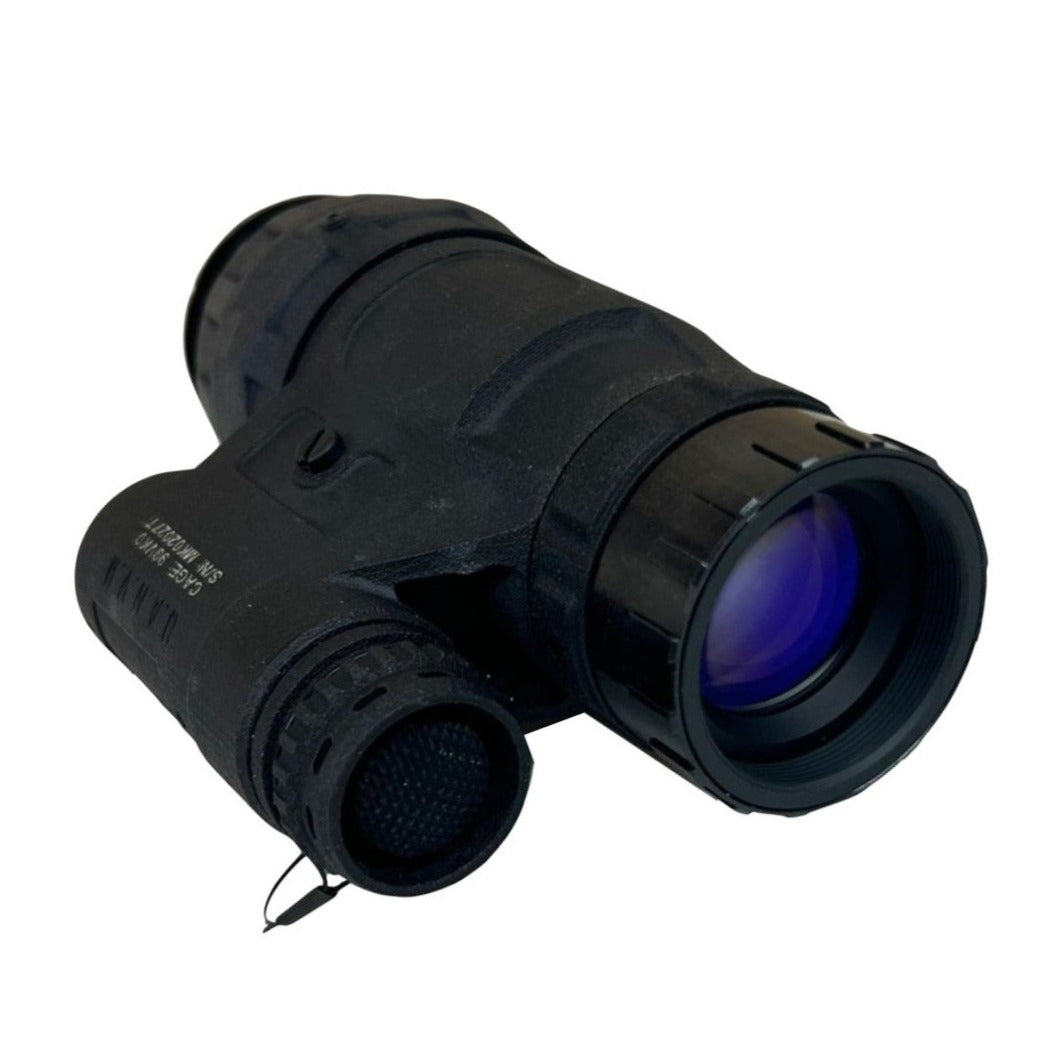

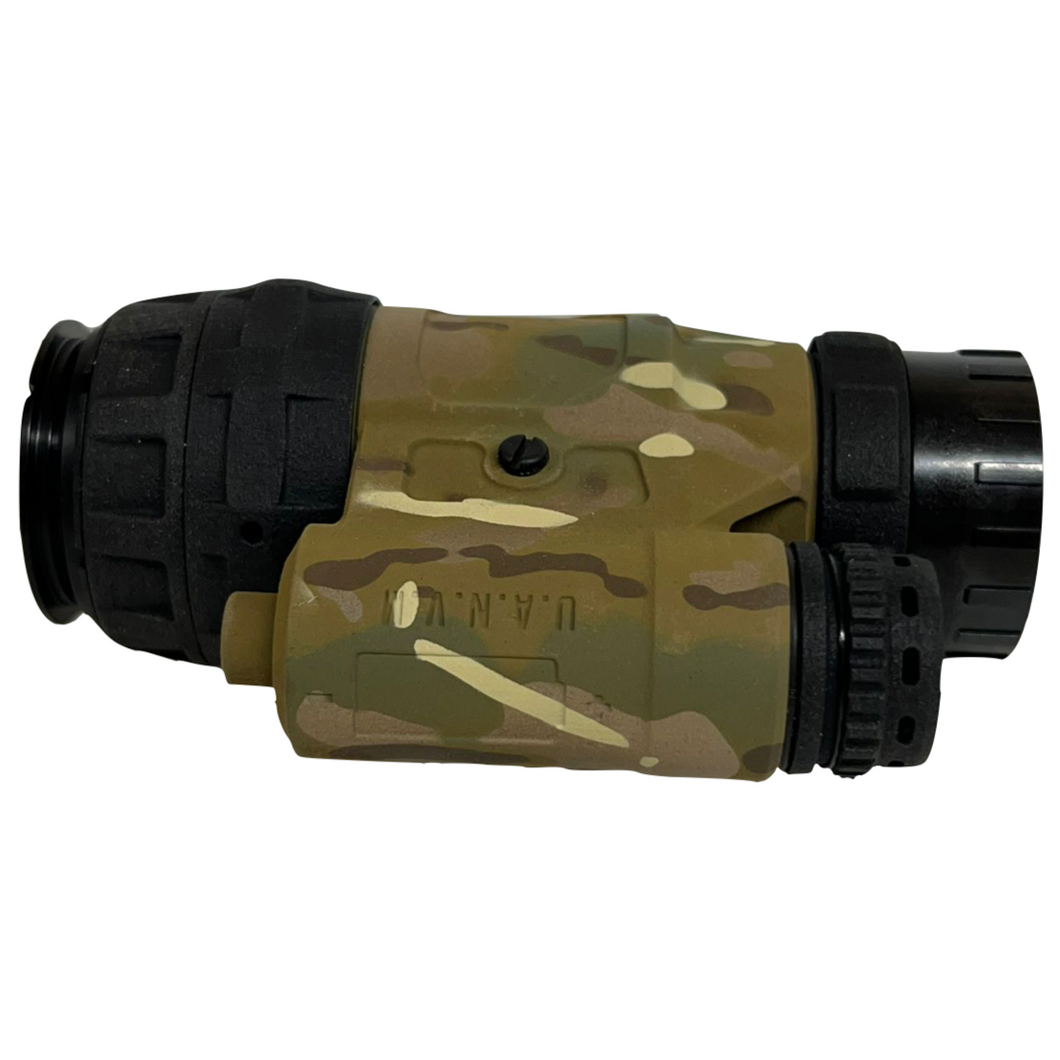

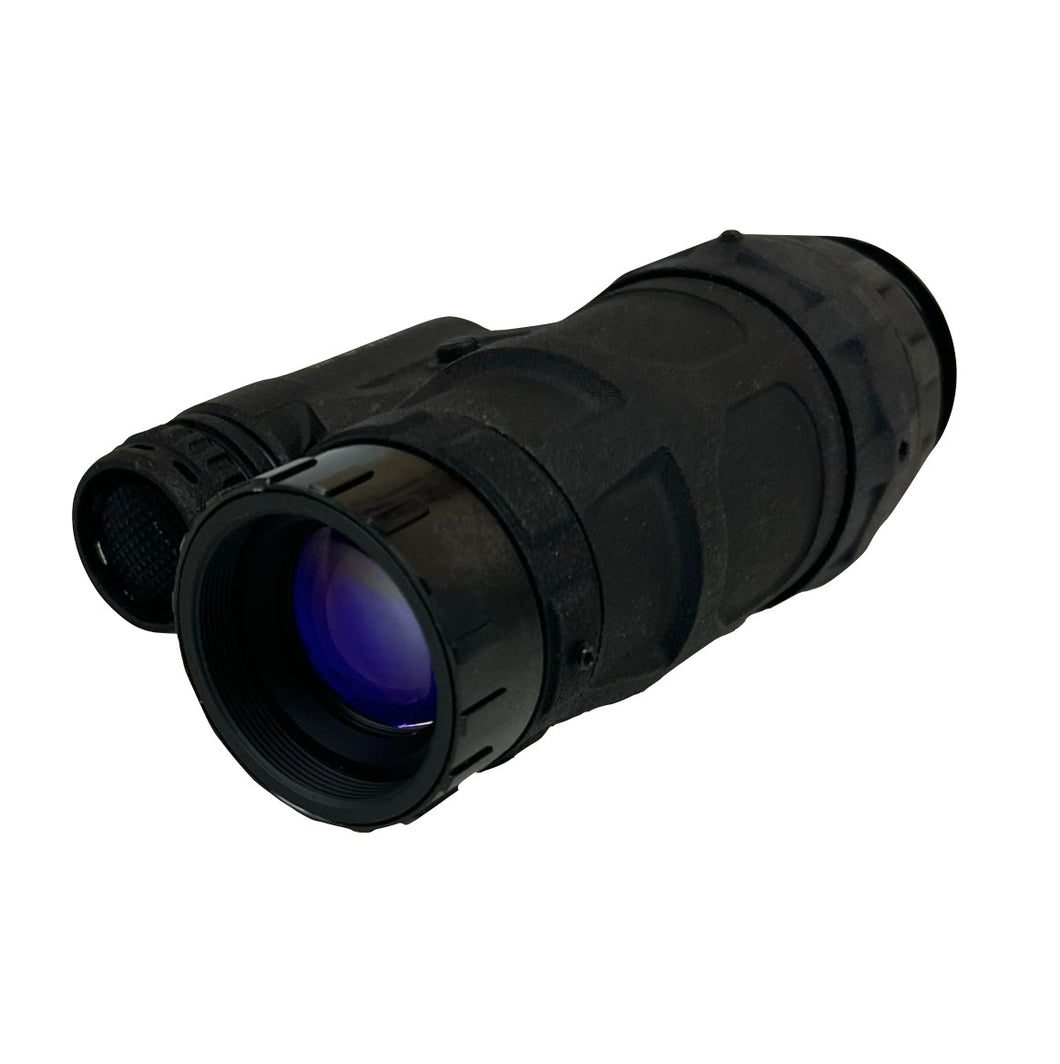

The Ultralight Adaptable Night Vision Monocular are the cornerstone of our adaptable series of night vision devices. This unit mounts via a standard PVS-14 J-arm mount. A unique feature of this monocular is its ability to be adapted to a proprietary powered articulating dual bridge mount called the TAB (Tanto Articulating Bridge) “Daisho” with minimal tools or extra parts.
*The housing will come with an infinity stop ring and tube retaining ring. Optics, IIT, close focus stop and eyepiece lock are not included with the housing.*
The innovative design allows users to transform their monoculars into an articulating binocular in seconds or go from a binocular back to a monocular to share with a partner. To transform into the binocular, simply remove the battery cap and battery, insert the bridge into the battery compartment, and tighten the rear clamp screws on the bridge, done. The bridge enables the use of a single battery for both tubes, has built in IP stops similar to the UANVB “Katana”, and other features when released.
The Tanto Articulating Bridge will be released at a later date.It is simple with a minimalist lightweight design. Push button on/off in the cap to reduce weight and reduce the footprint of the monocular. When assembled to the TAB “Daisho” bridge extra features are enabled such as articulation to the side for single or dual eye use. The articulating design also enables users to operate vehicles without limiting head space by eliminating the need to stow the unit upright or to tuck the pods against the helmet when stowed.
This unit is light weight without compromising strength. It is rugged and has been drop from the NATO 1.5 meter drop test standard onto concrete, as well as meets and exceeds MIL-STD-810G.
- Material: Polymer
- Tube type: MX-10160 style, Autogain only.
- Submersion and Dust Rating: IP68+ equivalent
- Weight: 8.76 OZ with standard optics and a battery
- Power: CR123 onboard
- Runtime: 40+ hours
- Mount style: PVS-14 J-arm style mount
