FDE; AB NightVision - RVM-14 Housing Kit - HCC Tactical

RVM-14 Housing Kit

SKU: RVM-14-FDE

AB NightVision

$565.00 Sale

The AB Night Vision RVM-14 monocular housing is billet machined from 7075 aircraft-grade aluminum and designed to handle challenging real-world environments. The housing accepts standard...
Learn More >
Color
FDE Cerakote
Black Anodized
3 3 3
Available at checkout
{"id":8027928494234,"title":"RVM-14 Housing Kit","handle":"rvm-14","description":"\u003cp\u003eThe AB Night Vision RVM-14 monocular housing is billet machined from 7075 aircraft-grade aluminum and designed to handle challenging real-world environments. The housing accepts standard MIL-SPEC PVS-14 lenses or lightweight RPO lenses.\u003c\/p\u003e\n\u003cp\u003eThe RVM-14 features a side mounting area for PVS-14 accessories and mounts using a standard 1⁄4-20 thread. Two monoculars can be attached to the RVM-14 Bridge in a binocular configuration using the small dovetail incorporated into the top of the housing. The dovetail can also be used with the RVM-14 Arm for single-monocular use. Both the Arm and Bridge articulate to lay back against the helmet when in the stowed position.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eGain Adjustment and Infrared Illuminator: \u003c\/strong\u003eA rotary switch controls the monocular and also functions as the gain adjustment. The switch initially turns the tube on at full brightness, then dims the MX-11769 image intensifier tube as the knob is rotated further. An onboard infrared illuminator is activated by a pushbutton switch on the front of the unit. The button is surrounded by a protective fence to prevent accidental activation. Indicators on the edge of the viewing area show when the IR LED is actively on or when the unit detects a low battery.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eWeight and Battery Life: \u003c\/strong\u003eThe RVM-14 weighs 300 grams with standard MIL-SPEC lenses and a CR123 battery. Approximate battery life at room temperature is 75 hours. The RVM-14 weighs 15% less than a typical single AA PVS-14, provides 50% longer battery life, and has a much tougher housing.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eFinish Options: \u003c\/strong\u003eThe RVM-14 is available in Flat Black and Flat Dark Earth (FDE). The monocular components are media blasted to provide a non-reflective matte finish before being black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to provide a tough, attractive finish.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSPECIFICATIONS:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cdiv title=\"Page 1\"\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cdiv title=\"Page 1\"\u003e\n\u003cul\u003e\n\u003cli\u003ePower Source: (1) CR123 Size Battery\u003c\/li\u003e\n\u003cli\u003eFocus Range: 9.8\" to infinity\u003c\/li\u003e\n\u003cli\u003eOperation Time: Approximately 75 hours at room temperature\u003c\/li\u003e\n\u003cli\u003eMagnification: (1x) one power\u003c\/li\u003e\n\u003cli\u003eField Of View: 40 degrees\u003c\/li\u003e\n\u003cli\u003eDiopter Adjustment: -6 to +2\u003c\/li\u003e\n\u003cli\u003eEye Relief: 25mm\u003c\/li\u003e\n\u003cli\u003eWeight: 300g with std Mil-Spec optics and battery\u003c\/li\u003e\n\u003cli\u003eDimensions: 2.0\" x 2.6\" x 4.2\"\u003c\/li\u003e\n\u003cli\u003eIR Illuminator: Built in\u003c\/li\u003e\n\u003cli\u003eWater Resistance: Submersible to 66 ft\u003c\/li\u003e\n\u003cli\u003eIR LED \u0026amp; Low Battery Indicators: Yes\u003c\/li\u003e\n\u003cli\u003eIntensifier Tubes: Compatible with MX-11769 style\u003c\/li\u003e\n\u003cli\u003eOptics: Compatible with PVS-14 eyepiece and objective\u003c\/li\u003e\n\u003cli\u003eWarranty: 5 years on housing parts and service per policy\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cstrong\u003eOPERATING INSTRUCTIONS:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul type=\"disc\"\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eAssemble the monoculars just like a PVS-14\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eThe rotary switch turns on at full brightness then functions as a gain knob to dim the unit as you rotate further.\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eThe IR LED is controlled by the push button switch in the front.\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eThe indicator in the viewing area glows steadily if the IR LED is on, or flashes to indicate a low battery.  If the IR LED is on and a low battery is sensed, the user will see the indicator staying on but pulsing brighter and dimmer.\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\u003cspan lang=\"en-US\"\u003eTo install the Bridge or Arm onto the RVM-14 make sure the locking screw is fully backed out.  Slide the shoe onto the dovetail until it stops, and tighten the locking screw to lock it in.  Loosen the locking screw knob fully to remove.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch4\u003eProduct Downloads\u003c\/h4\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1664\/1057\/files\/RVM-14_Data_Sheet_8b0d7771-1a31-4bd0-9f22-3cb755fa61dc.pdf?v=1715342091\" target=\"_blank\"\u003eSpec Sheet\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2024-03-09T00:02:30-05:00","created_at":"2024-01-15T03:59:37-05:00","vendor":"AB NightVision","type":"NVG Housings","tags":["AB NightVision","HC10","NVG Housings"],"price":49900,"price_min":49900,"price_max":56500,"available":true,"price_varies":true,"compare_at_price":null,"compare_at_price_min":0,"compare_at_price_max":0,"compare_at_price_varies":false,"variants":[{"id":44331748524186,"title":"FDE Cerakote","option1":"FDE Cerakote","option2":null,"option3":null,"sku":"RVM-14-FDE","requires_shipping":true,"taxable":true,"featured_image":{"id":50028596592794,"product_id":8027928494234,"position":1,"created_at":"2026-09-08T08:37:16-04:00","updated_at":"2026-09-08T08:37:18-04:00","alt":"FDE; AB NightVision - RVM-14 Housing Kit - HCC Tactical","width":600,"height":600,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/RVM-14-nonbg.png?v=1788871038","variant_ids":[44331748524186]},"available":true,"name":"RVM-14 Housing Kit - FDE Cerakote","public_title":"FDE Cerakote","options":["FDE Cerakote"],"price":56500,"weight":113,"compare_at_price":null,"inventory_quantity":1,"inventory_management":"shopify","inventory_policy":"deny","barcode":"721139599","featured_media":{"alt":"FDE; AB NightVision - RVM-14 Housing Kit - HCC Tactical","id":38322298945690,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/RVM-14-nonbg.png?v=1788871038"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":44331748458650,"title":"Black Anodized","option1":"Black Anodized","option2":null,"option3":null,"sku":"RVM-14-B","requires_shipping":true,"taxable":true,"featured_image":null,"available":true,"name":"RVM-14 Housing Kit - Black Anodized","public_title":"Black Anodized","options":["Black Anodized"],"price":49900,"weight":113,"compare_at_price":null,"inventory_quantity":3,"inventory_management":"shopify","inventory_policy":"deny","barcode":"721139526","requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.hcctac.com\/cdn\/shop\/files\/RVM-14-nonbg.png?v=1788871038","\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.46_1_5a765826-b564-4971-9fbe-518683e9cae1.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.38_e57da094-b70a-4ebb-983d-f9e7d6ba652c.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.43_9d9f3704-7b1a-4f02-b4c1-e2f16e57a7cd.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9851_1.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9866-Edit.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9847.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9863-Edit.jpg?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.08.52.png?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.09.08.png?v=1713421471","\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.09.24.png?v=1713421471"],"featured_image":"\/\/www.hcctac.com\/cdn\/shop\/files\/RVM-14-nonbg.png?v=1788871038","options":["Color"],"media":[{"alt":"FDE; AB NightVision - RVM-14 Housing Kit - HCC Tactical","id":38322298945690,"position":1,"preview_image":{"aspect_ratio":1.0,"height":600,"width":600,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/RVM-14-nonbg.png?v=1788871038"},"aspect_ratio":1.0,"height":600,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/RVM-14-nonbg.png?v=1788871038","width":600},{"alt":"AB NightVision - RVM-14 Housing Kit - v - HCC Tactical","id":31674618085530,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1295,"width":1295,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.46_1_5a765826-b564-4971-9fbe-518683e9cae1.jpg?v=1713421471"},"aspect_ratio":1.0,"height":1295,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.46_1_5a765826-b564-4971-9fbe-518683e9cae1.jpg?v=1713421471","width":1295},{"alt":"AB NightVision - RVM-14 Housing Kit - v2 - HCC Tactical","id":31674618118298,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1185,"width":1185,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.38_e57da094-b70a-4ebb-983d-f9e7d6ba652c.jpg?v=1713421471"},"aspect_ratio":1.0,"height":1185,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.38_e57da094-b70a-4ebb-983d-f9e7d6ba652c.jpg?v=1713421471","width":1185},{"alt":"AB NightVision - RVM-14 Housing Kit - v3 - HCC Tactical","id":31674618052762,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1413,"width":1413,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.43_9d9f3704-7b1a-4f02-b4c1-e2f16e57a7cd.jpg?v=1713421471"},"aspect_ratio":1.0,"height":1413,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/WhatsAppImage2024-02-28at22.17.43_9d9f3704-7b1a-4f02-b4c1-e2f16e57a7cd.jpg?v=1713421471","width":1413},{"alt":"AB NightVision - RVM-14 Housing Kit - v4 - HCC Tactical","id":31297744535706,"position":5,"preview_image":{"aspect_ratio":1.0,"height":3047,"width":3047,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9851_1.jpg?v=1713421471"},"aspect_ratio":1.0,"height":3047,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9851_1.jpg?v=1713421471","width":3047},{"alt":"AB NightVision - RVM-14 Housing Kit - v5 - HCC Tactical","id":31297744634010,"position":6,"preview_image":{"aspect_ratio":1.0,"height":3047,"width":3047,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9866-Edit.jpg?v=1713421471"},"aspect_ratio":1.0,"height":3047,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9866-Edit.jpg?v=1713421471","width":3047},{"alt":"AB NightVision - RVM-14 Housing Kit - v 6 - HCC Tactical","id":31297744470170,"position":7,"preview_image":{"aspect_ratio":1.0,"height":3047,"width":3047,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9847.jpg?v=1713421471"},"aspect_ratio":1.0,"height":3047,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9847.jpg?v=1713421471","width":3047},{"alt":"AB NightVision - RVM-14 Housing Kit - v7 - HCC Tactical","id":31297744601242,"position":8,"preview_image":{"aspect_ratio":1.0,"height":3047,"width":3047,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9863-Edit.jpg?v=1713421471"},"aspect_ratio":1.0,"height":3047,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/DSC_9863-Edit.jpg?v=1713421471","width":3047},{"alt":"AB NightVision - RVM-14 Housing Kit - v 8- HCC Tactical","id":31297789690010,"position":9,"preview_image":{"aspect_ratio":1.0,"height":694,"width":694,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.08.52.png?v=1713421471"},"aspect_ratio":1.0,"height":694,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.08.52.png?v=1713421471","width":694},{"alt":"AB NightVision - RVM-14 Housing Kit - v11 - HCC Tactical","id":31297789722778,"position":10,"preview_image":{"aspect_ratio":1.0,"height":731,"width":731,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.09.08.png?v=1713421471"},"aspect_ratio":1.0,"height":731,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.09.08.png?v=1713421471","width":731},{"alt":"AB NightVision - RVM-14 Housing Kit - v12 - HCC Tactical","id":31297789755546,"position":11,"preview_image":{"aspect_ratio":1.0,"height":667,"width":667,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.09.24.png?v=1713421471"},"aspect_ratio":1.0,"height":667,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot2024-01-15at11.09.24.png?v=1713421471","width":667}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003eThe AB Night Vision RVM-14 monocular housing is billet machined from 7075 aircraft-grade aluminum and designed to handle challenging real-world environments. The housing accepts standard MIL-SPEC PVS-14 lenses or lightweight RPO lenses.\u003c\/p\u003e\n\u003cp\u003eThe RVM-14 features a side mounting area for PVS-14 accessories and mounts using a standard 1⁄4-20 thread. Two monoculars can be attached to the RVM-14 Bridge in a binocular configuration using the small dovetail incorporated into the top of the housing. The dovetail can also be used with the RVM-14 Arm for single-monocular use. Both the Arm and Bridge articulate to lay back against the helmet when in the stowed position.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eGain Adjustment and Infrared Illuminator: \u003c\/strong\u003eA rotary switch controls the monocular and also functions as the gain adjustment. The switch initially turns the tube on at full brightness, then dims the MX-11769 image intensifier tube as the knob is rotated further. An onboard infrared illuminator is activated by a pushbutton switch on the front of the unit. The button is surrounded by a protective fence to prevent accidental activation. Indicators on the edge of the viewing area show when the IR LED is actively on or when the unit detects a low battery.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eWeight and Battery Life: \u003c\/strong\u003eThe RVM-14 weighs 300 grams with standard MIL-SPEC lenses and a CR123 battery. Approximate battery life at room temperature is 75 hours. The RVM-14 weighs 15% less than a typical single AA PVS-14, provides 50% longer battery life, and has a much tougher housing.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eFinish Options: \u003c\/strong\u003eThe RVM-14 is available in Flat Black and Flat Dark Earth (FDE). The monocular components are media blasted to provide a non-reflective matte finish before being black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to provide a tough, attractive finish.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eSPECIFICATIONS:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cdiv title=\"Page 1\"\u003e\n\u003cdiv\u003e\n\u003cdiv\u003e\n\u003cdiv title=\"Page 1\"\u003e\n\u003cul\u003e\n\u003cli\u003ePower Source: (1) CR123 Size Battery\u003c\/li\u003e\n\u003cli\u003eFocus Range: 9.8\" to infinity\u003c\/li\u003e\n\u003cli\u003eOperation Time: Approximately 75 hours at room temperature\u003c\/li\u003e\n\u003cli\u003eMagnification: (1x) one power\u003c\/li\u003e\n\u003cli\u003eField Of View: 40 degrees\u003c\/li\u003e\n\u003cli\u003eDiopter Adjustment: -6 to +2\u003c\/li\u003e\n\u003cli\u003eEye Relief: 25mm\u003c\/li\u003e\n\u003cli\u003eWeight: 300g with std Mil-Spec optics and battery\u003c\/li\u003e\n\u003cli\u003eDimensions: 2.0\" x 2.6\" x 4.2\"\u003c\/li\u003e\n\u003cli\u003eIR Illuminator: Built in\u003c\/li\u003e\n\u003cli\u003eWater Resistance: Submersible to 66 ft\u003c\/li\u003e\n\u003cli\u003eIR LED \u0026amp; Low Battery Indicators: Yes\u003c\/li\u003e\n\u003cli\u003eIntensifier Tubes: Compatible with MX-11769 style\u003c\/li\u003e\n\u003cli\u003eOptics: Compatible with PVS-14 eyepiece and objective\u003c\/li\u003e\n\u003cli\u003eWarranty: 5 years on housing parts and service per policy\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e\n\u003cp\u003e\u003cstrong\u003eOPERATING INSTRUCTIONS:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul type=\"disc\"\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eAssemble the monoculars just like a PVS-14\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eThe rotary switch turns on at full brightness then functions as a gain knob to dim the unit as you rotate further.\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eThe IR LED is controlled by the push button switch in the front.\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\n\u003cspan lang=\"en-US\"\u003eThe indicator in the viewing area glows steadily if the IR LED is on, or flashes to indicate a low battery.  If the IR LED is on and a low battery is sensed, the user will see the indicator staying on but pulsing brighter and dimmer.\u003c\/span\u003e\u003cspan lang=\"en-US\"\u003e\u003c\/span\u003e\n\u003c\/li\u003e\n\u003cli\u003e\u003cspan lang=\"en-US\"\u003eTo install the Bridge or Arm onto the RVM-14 make sure the locking screw is fully backed out.  Slide the shoe onto the dovetail until it stops, and tighten the locking screw to lock it in.  Loosen the locking screw knob fully to remove.\u003c\/span\u003e\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch4\u003eProduct Downloads\u003c\/h4\u003e\n\u003cul\u003e\n\u003cli\u003e\u003ca rel=\"noopener\" href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1664\/1057\/files\/RVM-14_Data_Sheet_8b0d7771-1a31-4bd0-9f22-3cb755fa61dc.pdf?v=1715342091\" target=\"_blank\"\u003eSpec Sheet\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

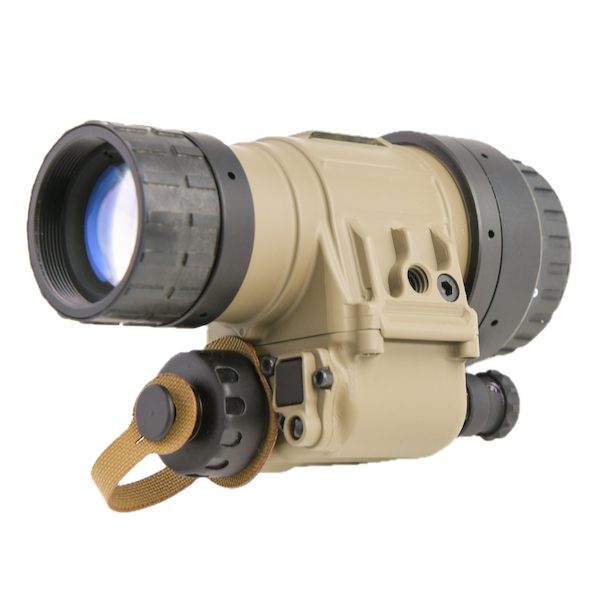

The AB Night Vision RVM-14 monocular housing is billet machined from 7075 aircraft-grade aluminum and designed to handle challenging real-world environments. The housing accepts standard MIL-SPEC PVS-14 lenses or lightweight RPO lenses.

The RVM-14 features a side mounting area for PVS-14 accessories and mounts using a standard 1⁄4-20 thread. Two monoculars can be attached to the RVM-14 Bridge in a binocular configuration using the small dovetail incorporated into the top of the housing. The dovetail can also be used with the RVM-14 Arm for single-monocular use. Both the Arm and Bridge articulate to lay back against the helmet when in the stowed position.

Gain Adjustment and Infrared Illuminator: A rotary switch controls the monocular and also functions as the gain adjustment. The switch initially turns the tube on at full brightness, then dims the MX-11769 image intensifier tube as the knob is rotated further. An onboard infrared illuminator is activated by a pushbutton switch on the front of the unit. The button is surrounded by a protective fence to prevent accidental activation. Indicators on the edge of the viewing area show when the IR LED is actively on or when the unit detects a low battery.

Weight and Battery Life: The RVM-14 weighs 300 grams with standard MIL-SPEC lenses and a CR123 battery. Approximate battery life at room temperature is 75 hours. The RVM-14 weighs 15% less than a typical single AA PVS-14, provides 50% longer battery life, and has a much tougher housing.

Finish Options: The RVM-14 is available in Flat Black and Flat Dark Earth (FDE). The monocular components are media blasted to provide a non-reflective matte finish before being black anodized for durability. For the FDE option, Cerakote, a proven firearms finish, is applied over the anodizing to provide a tough, attractive finish.

SPECIFICATIONS:

  • Power Source: (1) CR123 Size Battery
  • Focus Range: 9.8" to infinity
  • Operation Time: Approximately 75 hours at room temperature
  • Magnification: (1x) one power
  • Field Of View: 40 degrees
  • Diopter Adjustment: -6 to +2
  • Eye Relief: 25mm
  • Weight: 300g with std Mil-Spec optics and battery
  • Dimensions: 2.0" x 2.6" x 4.2"
  • IR Illuminator: Built in
  • Water Resistance: Submersible to 66 ft
  • IR LED & Low Battery Indicators: Yes
  • Intensifier Tubes: Compatible with MX-11769 style
  • Optics: Compatible with PVS-14 eyepiece and objective
  • Warranty: 5 years on housing parts and service per policy

OPERATING INSTRUCTIONS:

  • Assemble the monoculars just like a PVS-14
  • The rotary switch turns on at full brightness then functions as a gain knob to dim the unit as you rotate further.
  • The IR LED is controlled by the push button switch in the front.
  • The indicator in the viewing area glows steadily if the IR LED is on, or flashes to indicate a low battery.  If the IR LED is on and a low battery is sensed, the user will see the indicator staying on but pulsing brighter and dimmer.
  • To install the Bridge or Arm onto the RVM-14 make sure the locking screw is fully backed out.  Slide the shoe onto the dovetail until it stops, and tighten the locking screw to lock it in.  Loosen the locking screw knob fully to remove.
