- RNVG Housing
- RNVG Dovetail Extension
- Close Focus Stops
- Infinity Focus Stops
- Light Pipes
- Tube Retainer Rings
- NOTE: Does not include optics.

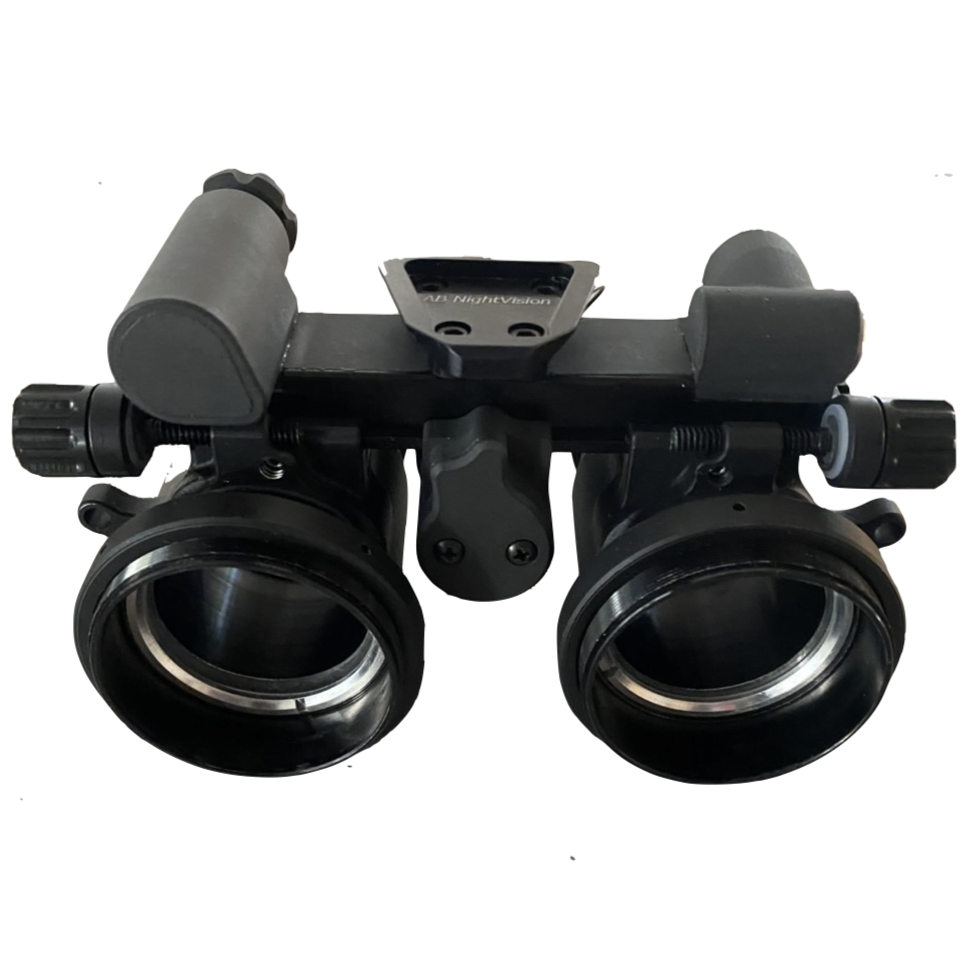

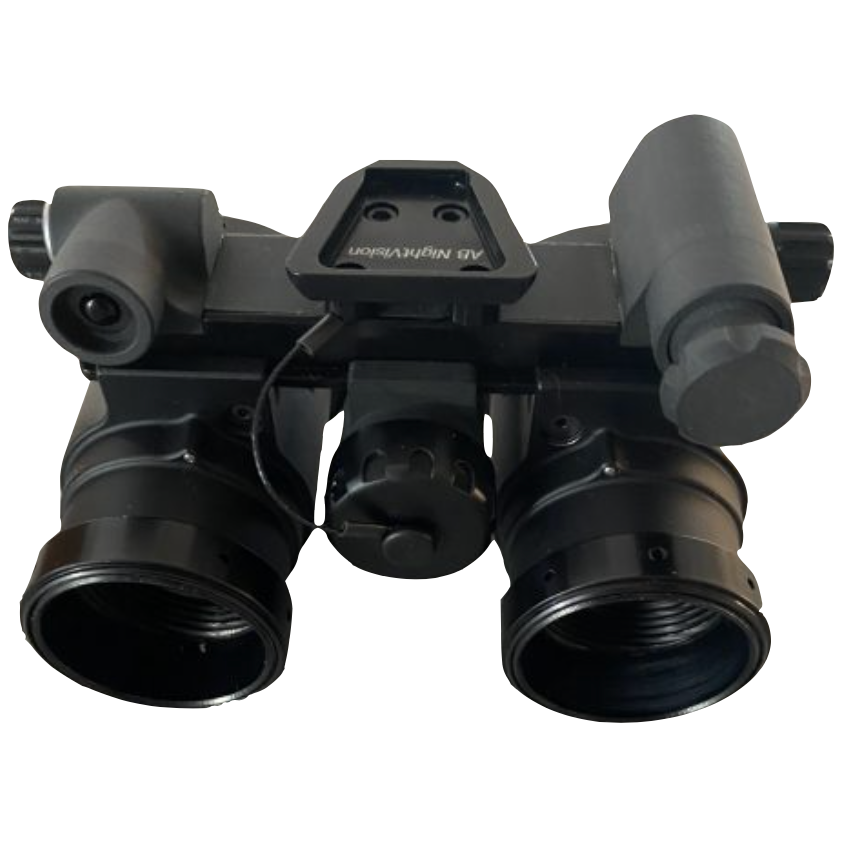

The RNVG housing is an extremely tough, full featured night vision binocular housings at an unbeatable price. This kit includes everything you need to build an RNVG except tubes and optics.
NOTE: Housing kit does not include optical lenses or intensifier tube
Familiar controls ensure ease of use. Any user familiar with PVS-14 goggles will find the controls to be intuitive. The switch and focusing functions are identical to the PVS-14. The switch has 3 positions: Off, On, and On with IR illuminator. Like the PVS-14, the switch does not cut power to the tubes when changing positions to turn the IR illuminator on. The RNVG has IR signaling capability. As a safety feature the switch knob must be pulled out to turn the IR illuminator on. An IR spot/flood adapter can be used if the user desires more range from their IR illuminator.
The RNVG is designed to work off a single AA battery, ensuring that users can find a power source at a local store no matter where in the world you happen to be. The binocular has a battery life of over 16 hours on a lithium AA and flashes a low battery indicator within the optics when the battery needs changing.
RNVG optics feature a full range of adjustment. The mil-spec objectives allow the user to focus between 9.8 inches and infinity, while the mil-spec eyepieces offer a diopter adjustment range of -6 to +2. The interpupillary distance is adjustable to match the users eye spacing from 51mm to 73mm. IP adjustment is accomplished with jackscrews that maintain user settings using a ball-detent method to prevent any changes due to vibration.
The RNVG was designed from the ground up to be extremely tough. When a night vision binocular is dropped and broken, it will most likely fail at the joint between the optical pods and the bridge. However, both the optical pods and bridge on the RNVG are CNC machined from solid billet 7075 aluminum to prevent breakage. This material is 36% stronger than most common steel making the RNVG the most rugged night vision goggle in production. Careful design combined with advanced machining techniques have kept the weight of the RNVG down to a very competitive level at 555 grams (without battery).
