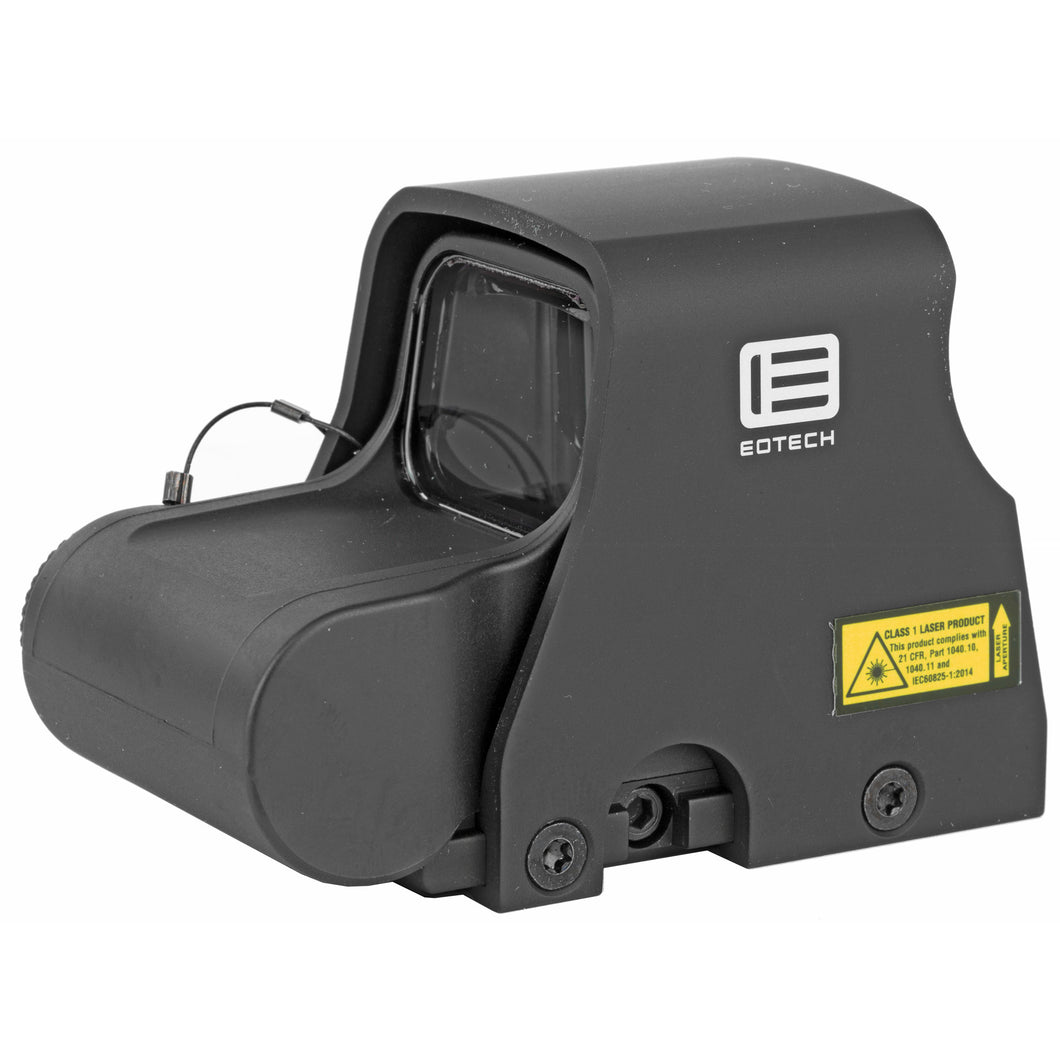

The HWS XPS2 is the non night-vision version of our shortest and lightest HWS sight so far. The CR123 lithium battery configuration of the XPS2 provides additional rail space, leaving more room for rear iron sights or magnifiers.
This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.
Also offering water-resistant capability up to 10 feet, the XPS2 is a great compact and lightweight option for your platform.
Non-Night Vision Compatible.
RETICLE OPTIONS:
EOTECH One Dot Reticle:
Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
EOTECH Two Dot Reticle:
Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.
EOTECH 1-MOA Dot Only Reticle:
Single 1-MOA dot reticle that can be zeroed at any distance.
Range Estimation with Unmagnified HWS:
The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.
Brightness Options:
SPECIFICATIONS:
- L X W X H: 3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm)
- Weight: 9.0 oz (255 g)
- Water Resistant: 10ft. (3 m) depth
- Mount: 1" Weaver or MIL-STD-1913 rail
- Windage & Elevation Adjustment: 0.5 MOA per click
- Brightness: 20 daylight settings
- Power Source: 1 x CR123 battery
- Battery Life: 1,000 continuous hours at nominal setting 12 at room temperature
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
-
Country of Origin: Made in USA
INCLUDED:
- HWS XPS2™
- Quick-Start Guide
- Warranty Card
- CR123 Battery
- Protective Case
