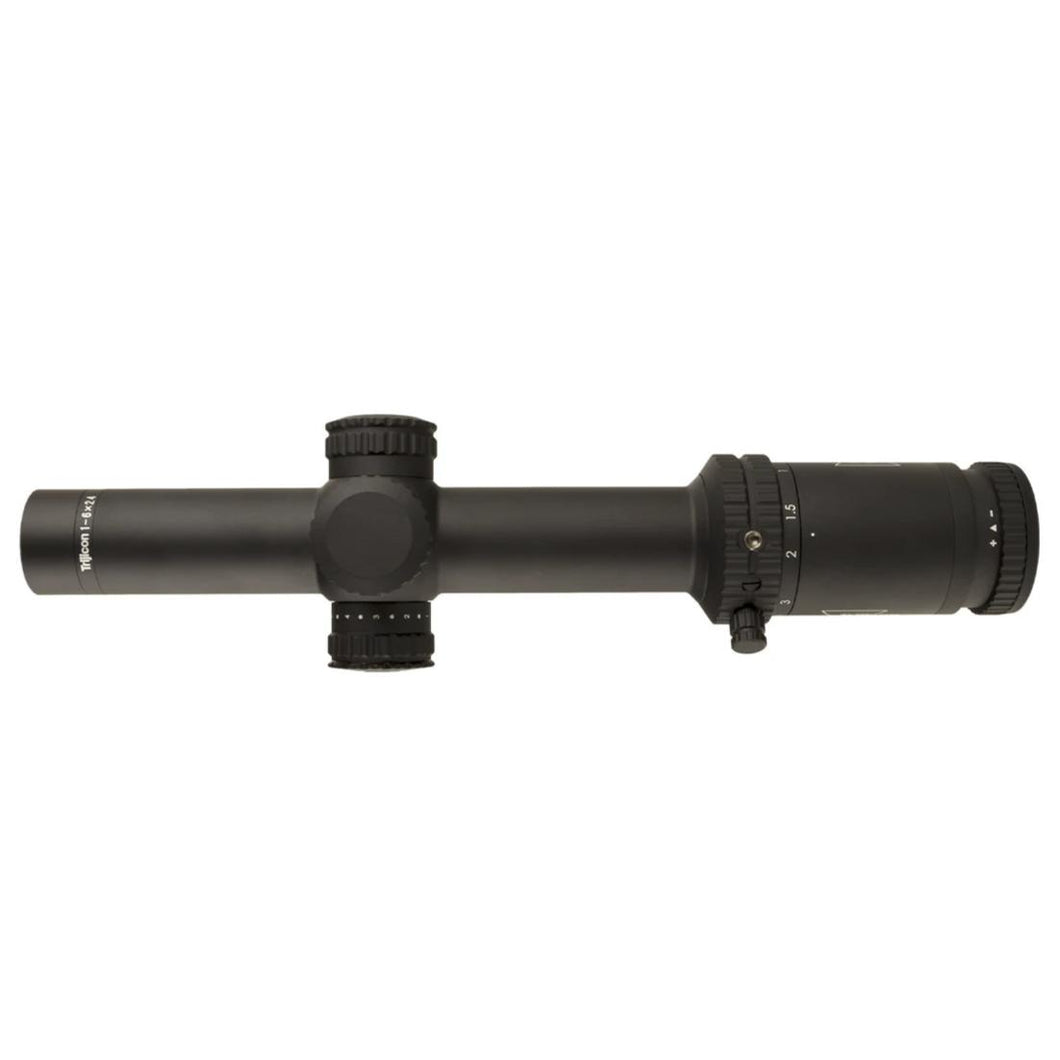

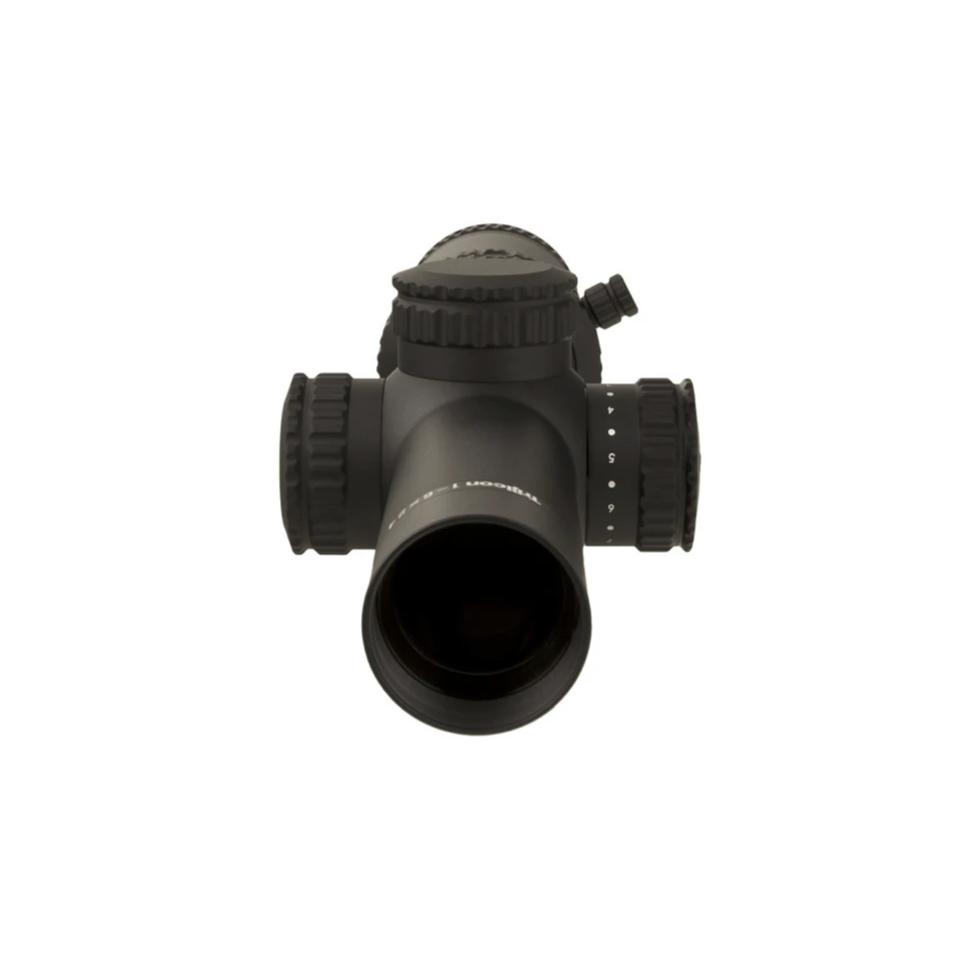

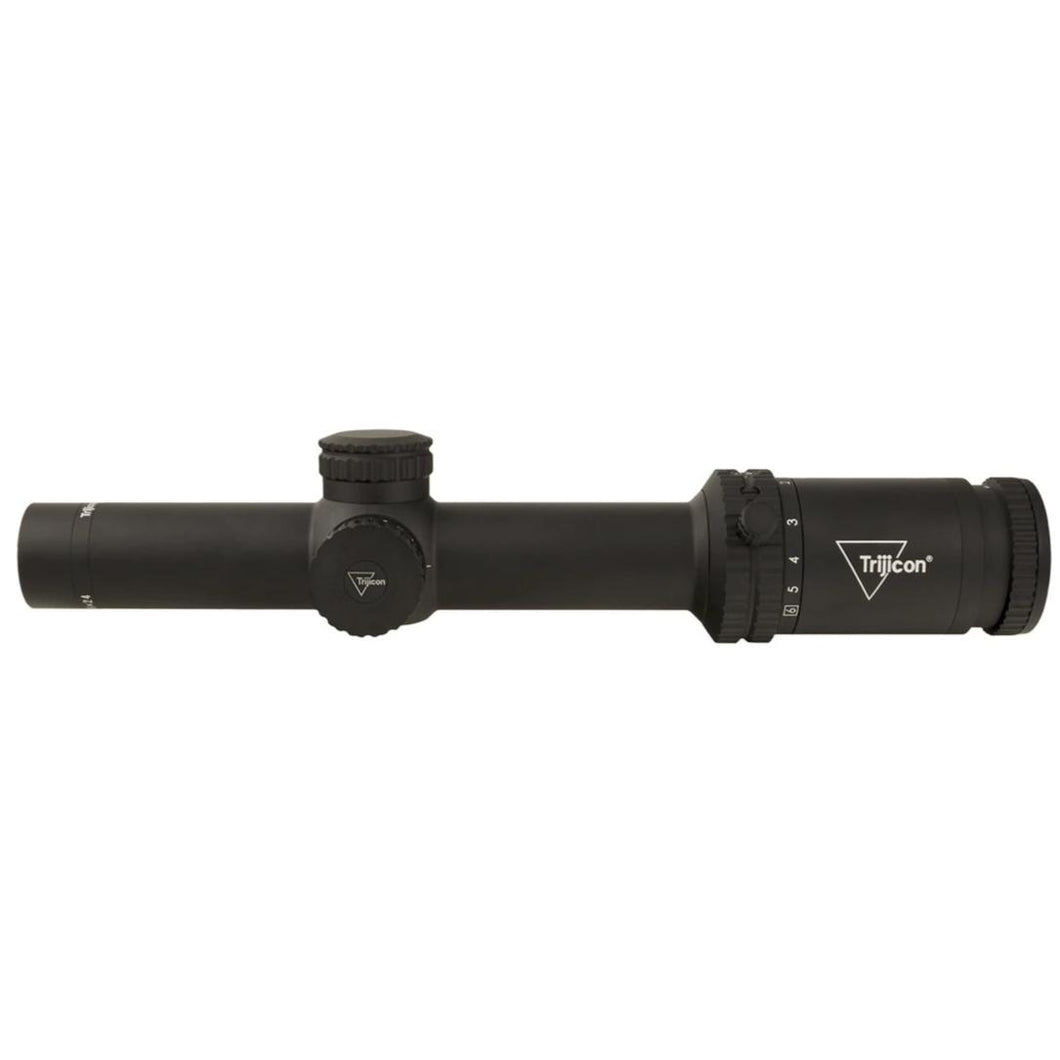

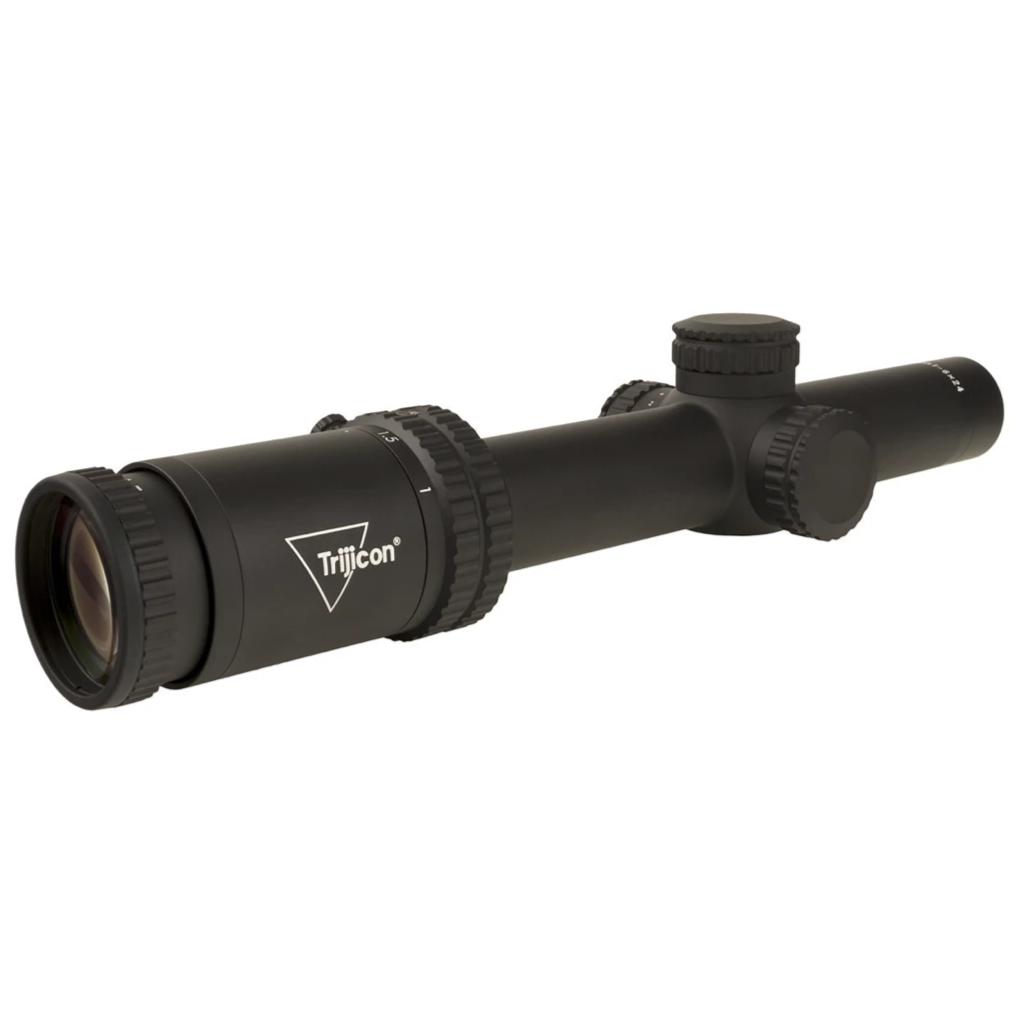

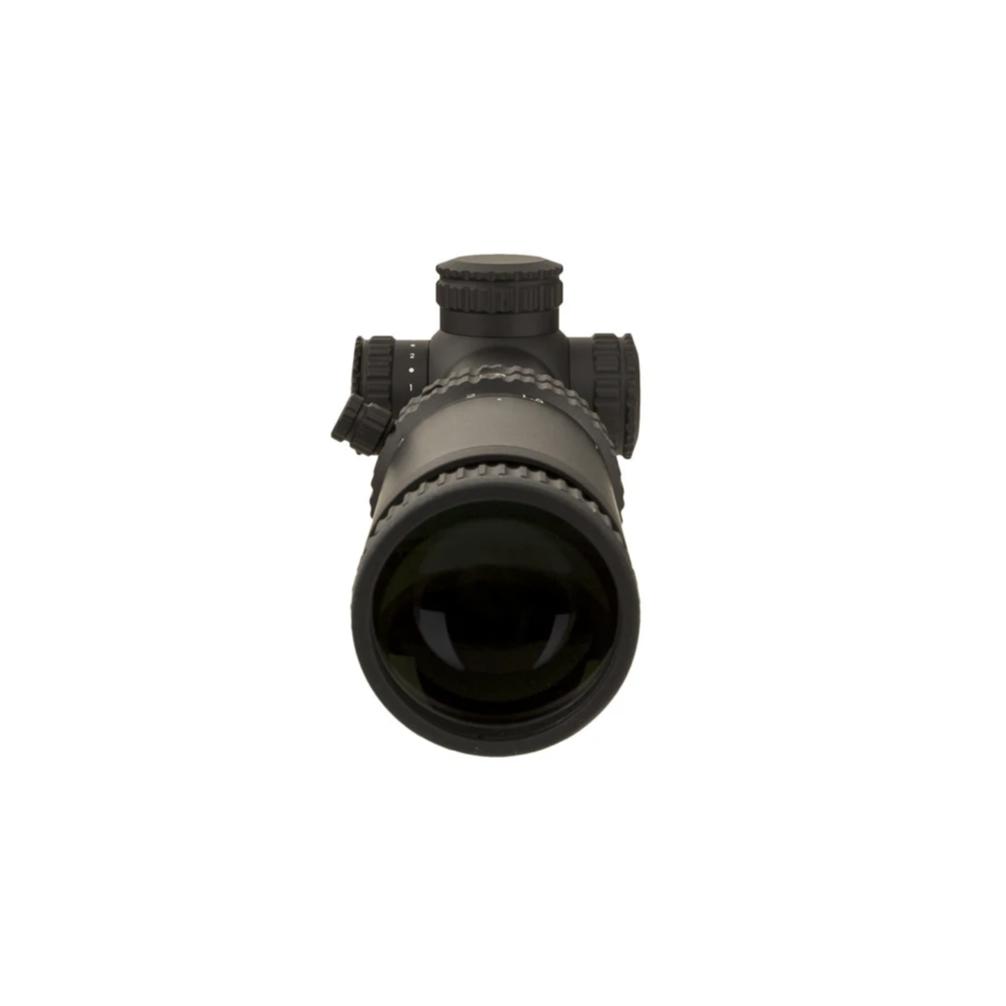

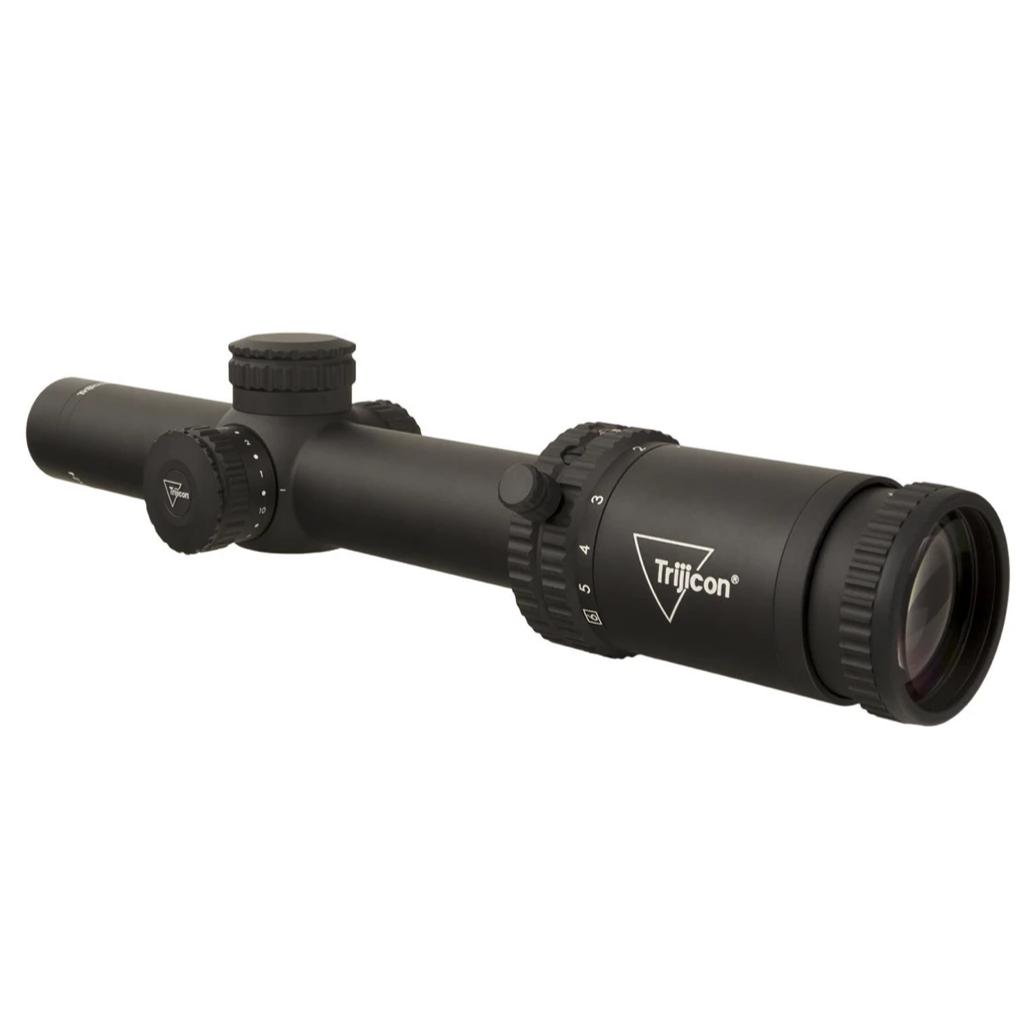

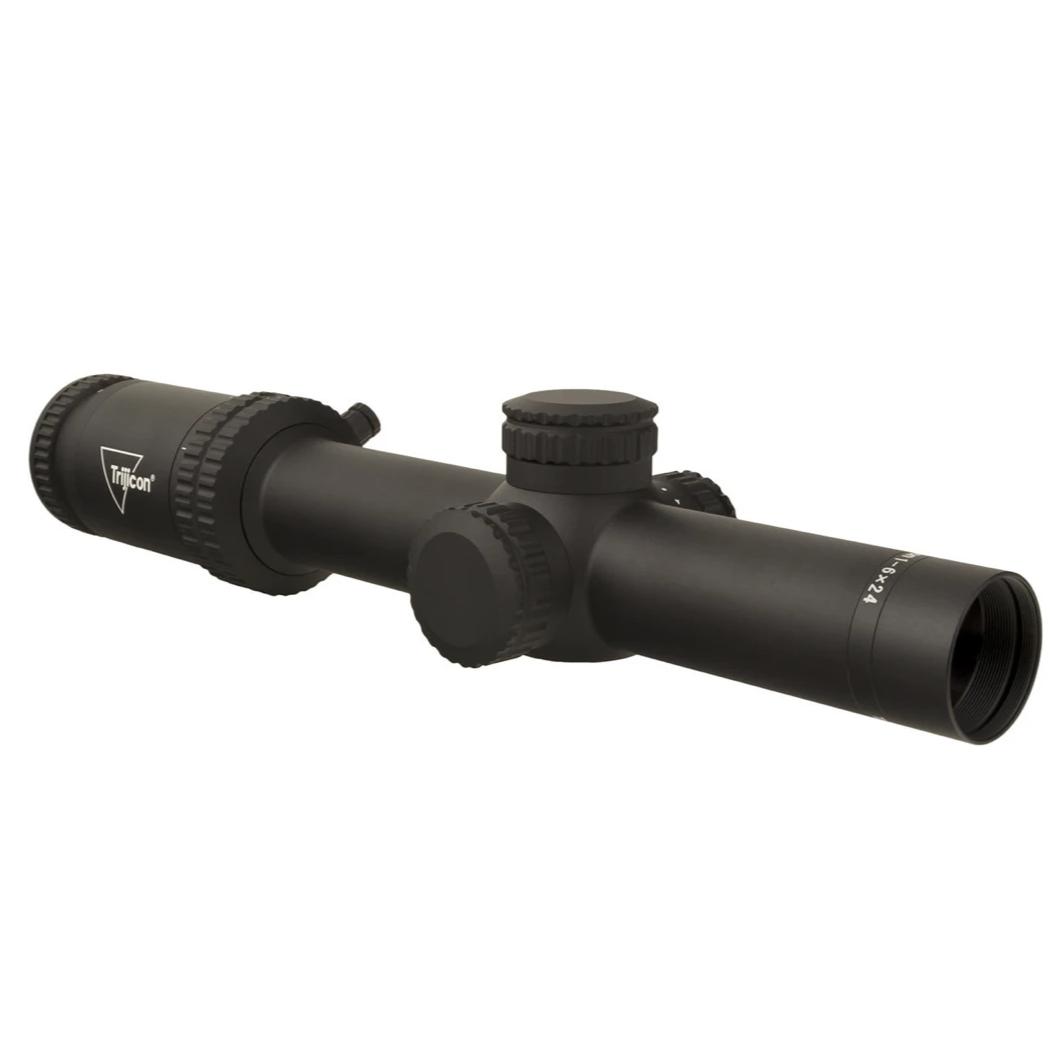

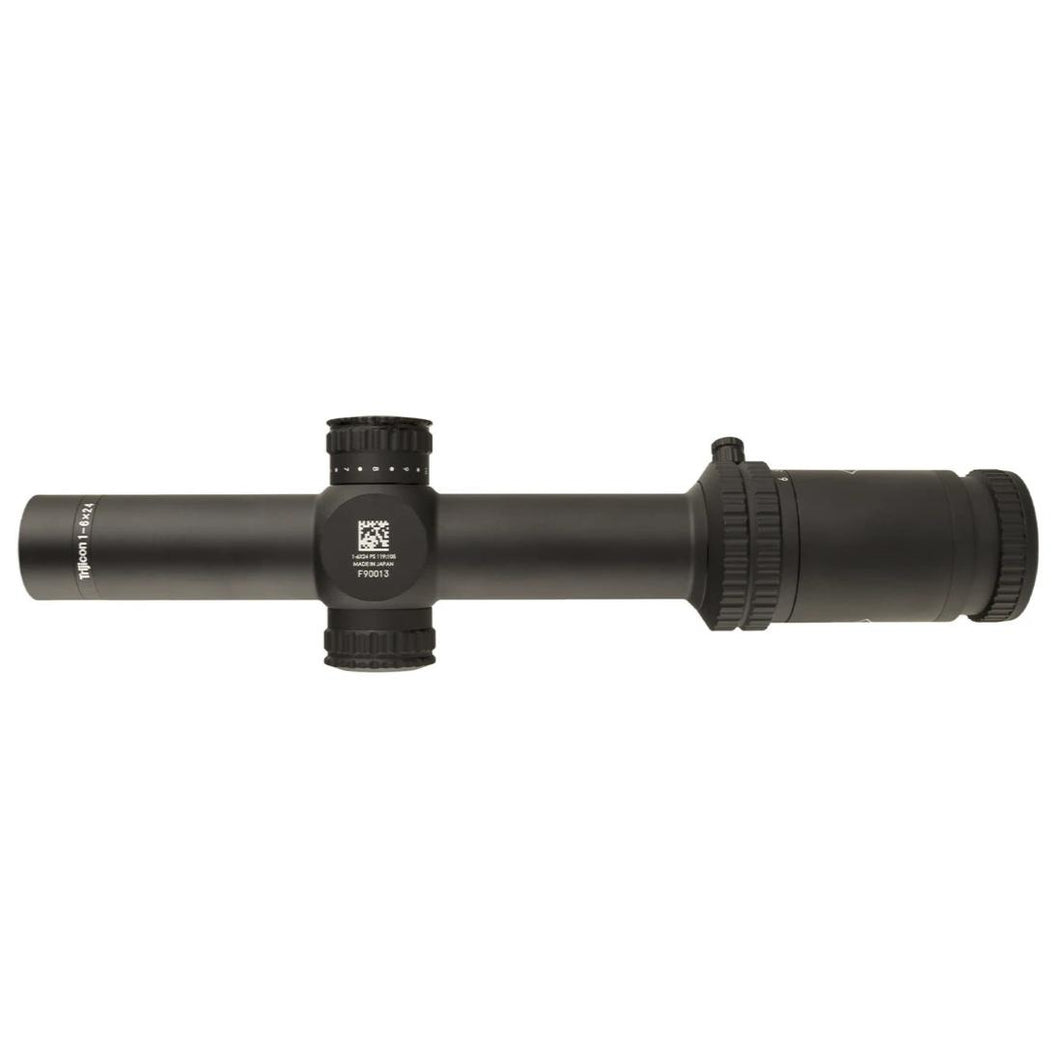

Second Focal Plane (SFP) Riflescope w/ Red / Green BDC Segmented Circle .223 / 55gr, 30mm Tube, Matte Black, Low Capped Adjusters
What we’ve learned from decades of deployment with America’s greatest fighting forces, we’ve put back into our technology for the Trijicon Credo™ tactical riflescope. It delivers an incredibly clear sight picture, green and red illuminated reticles, superior target acquisition, and rugged durability.
Designed specifically for 3-gunners, range warriors and law enforcement, the Trijicon Credo™ 1-6x24 gives you everything you want in a low power variable riflescope: lightweight durability, intuitive reticles and a choice of either first or second focal planes. The result is rapid target acquisition, an extra-wide field of view and confident aiming in any light.

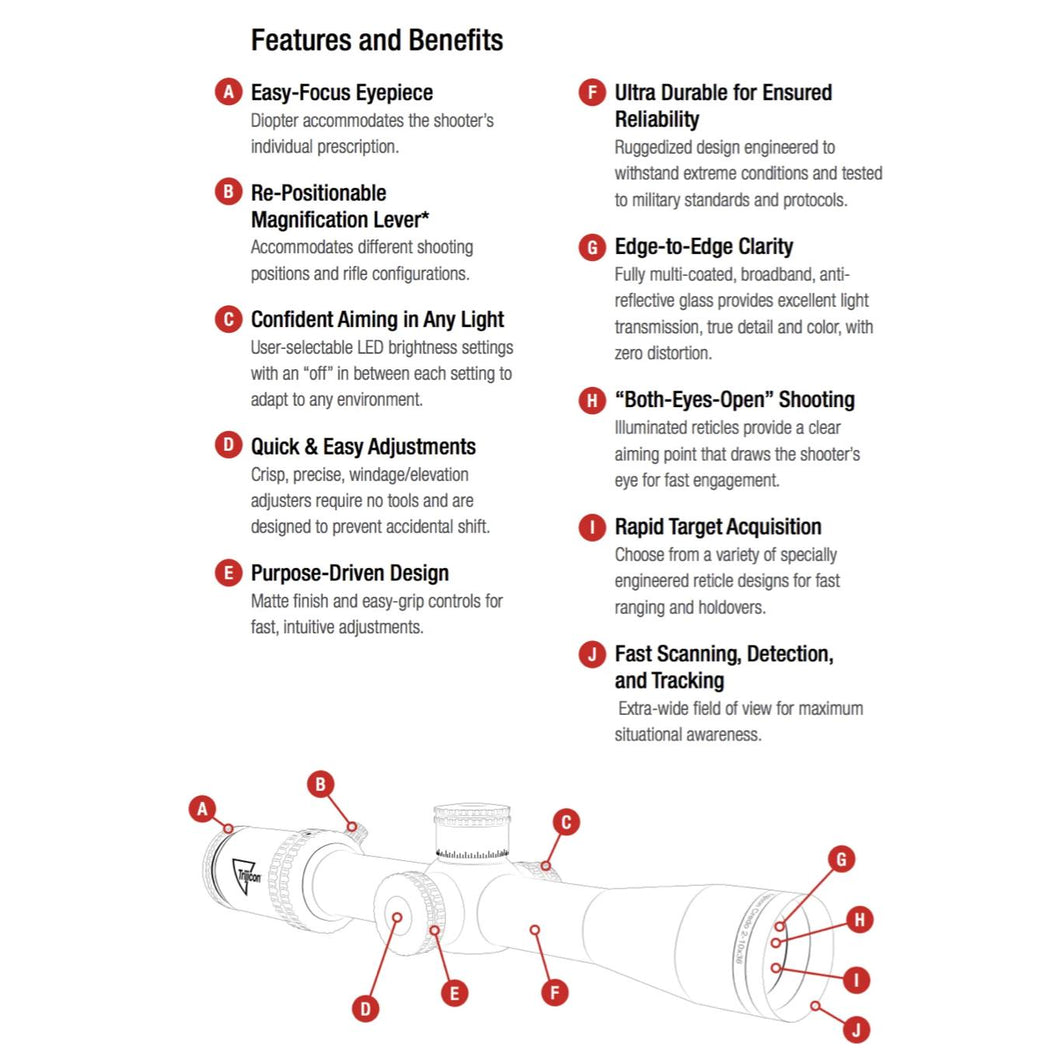

Both-Eyes-Open Shooting Illuminated reticles provide a clear aiming point that draws the shooter’s eye for fast engagement.
Confident Aiming In Any Light User-selectable LED brightness settings with an “off” in between each setting to adapt to any environment.

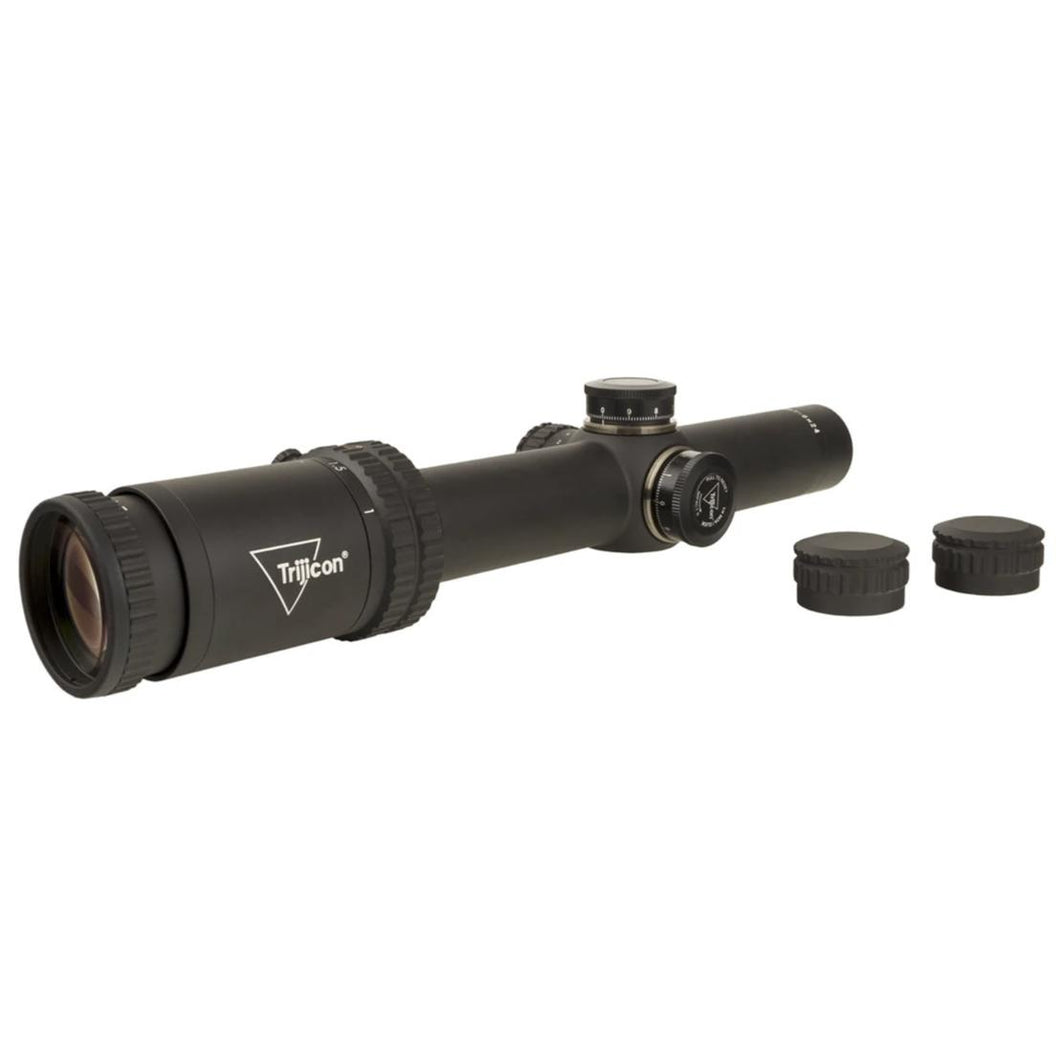

Quick & Easy Adjustments Crisp, precise, windage/elevation adjusters require no tools. Capped, locking or zero stop adjusters ensure no accidental shift.
Ultra Durable For Ensured Reliability Ruggedized design engineered to withstand extreme conditions and tested to military standards and protocols.
Fully multi-coated, broadband, anti-reflective glass provides excellent light transmission, true detail and color with zero distortion.
Fast Scanning, Detection And Tracking Extra-wide field of view for maximum situational awareness.
Purpose-Driven Design Matte finish and easy-grip controls for fast, intuitive adjustments.
Rapid Target Acquisition Choose from a variety of specially engineered reticle designs for fast ranging and holdovers.
Repositionable Magnification Lever Accommodates different shooting positions and rifle configurations.
Easy-Focus Eyepiece Diopter accommodates the shooter’s individual prescription.
SPECIFICATIONS (Option 1)
Length x Width x Height 10.9 in x 2.8 in x 2 in (276.86mm x 71.12mm x 50.8mm)
Weight 18.9 oz. (535.81g)
Objective Size 24mm
Tube Size 30mm

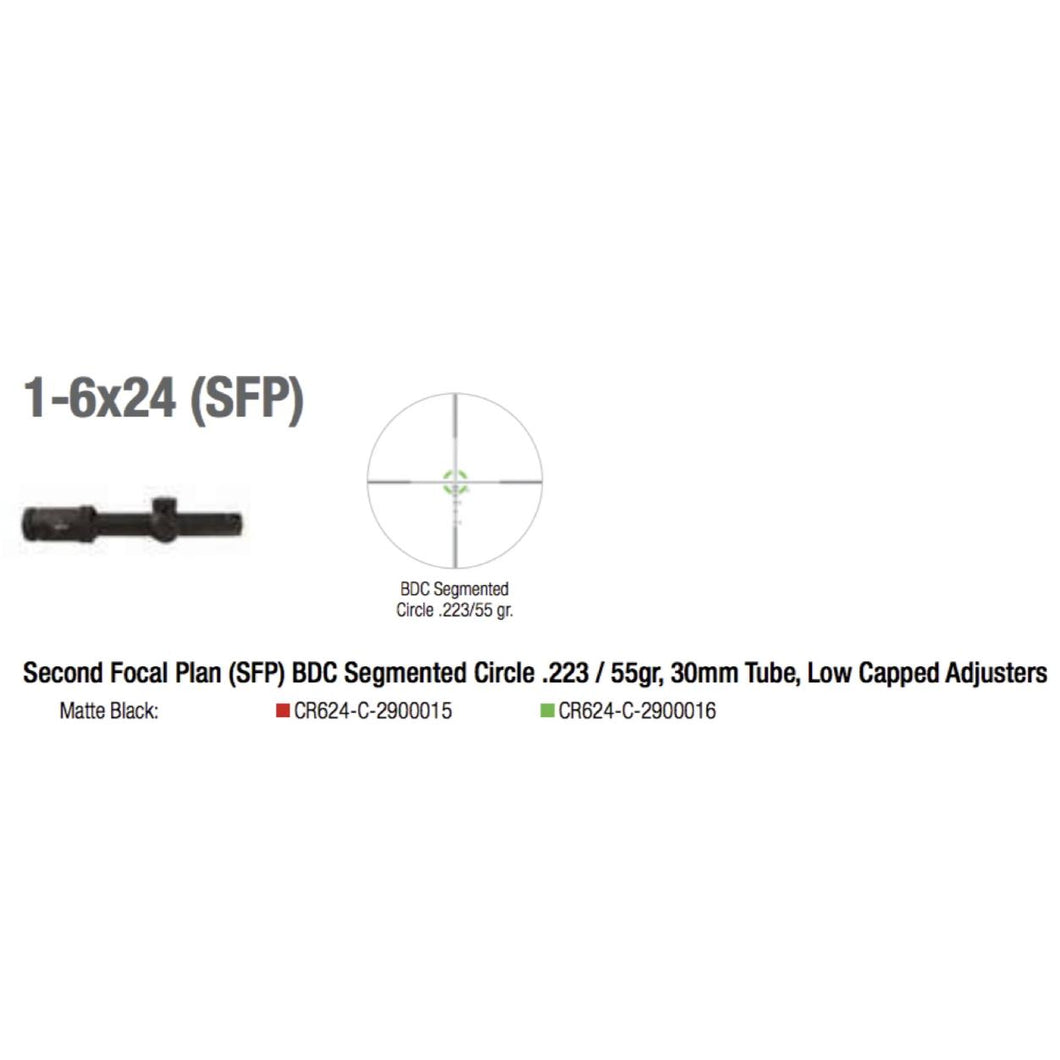

Reticle Pattern BDC Segmented Circle .223/55gr
Day Reticle Color Red / Green
Focal Plane Second
Bullet Drop Compensation (BDC) Yes
Caliber .223 / 55gr
Illumination Source LED
Illumination Settings 10
Power Source 1 CR2032
Battery Life 68 hours / 198 Hours
Adjustment 0.1 MRAD per click
Adjustment Range 29.1 MRAD Total Travel Time
Eye Relief 3.5 in. - 3.9 in. (88.9mm - 99.06mm)
Exit Pupil 0.47 in. - 0.16 in. (11.94mm - 4.06mm)
Field of View (degrees) 21.4° - 3.58°
Field of View (feet) 113.4 ft. - 18.8 ft. @ 100 yds. (37.8 - 6.27m @ 100m)
Housing Material 6061 Aircraft Grade Aluminum
Finish Matte Black
3mm Hex Key
1.5mm Hex Key
Repositionable Magnification Knob and Replacement Screw
