Trijicon - Compact ACOG® 3x24 (Low Height) - v - HCC Tactical

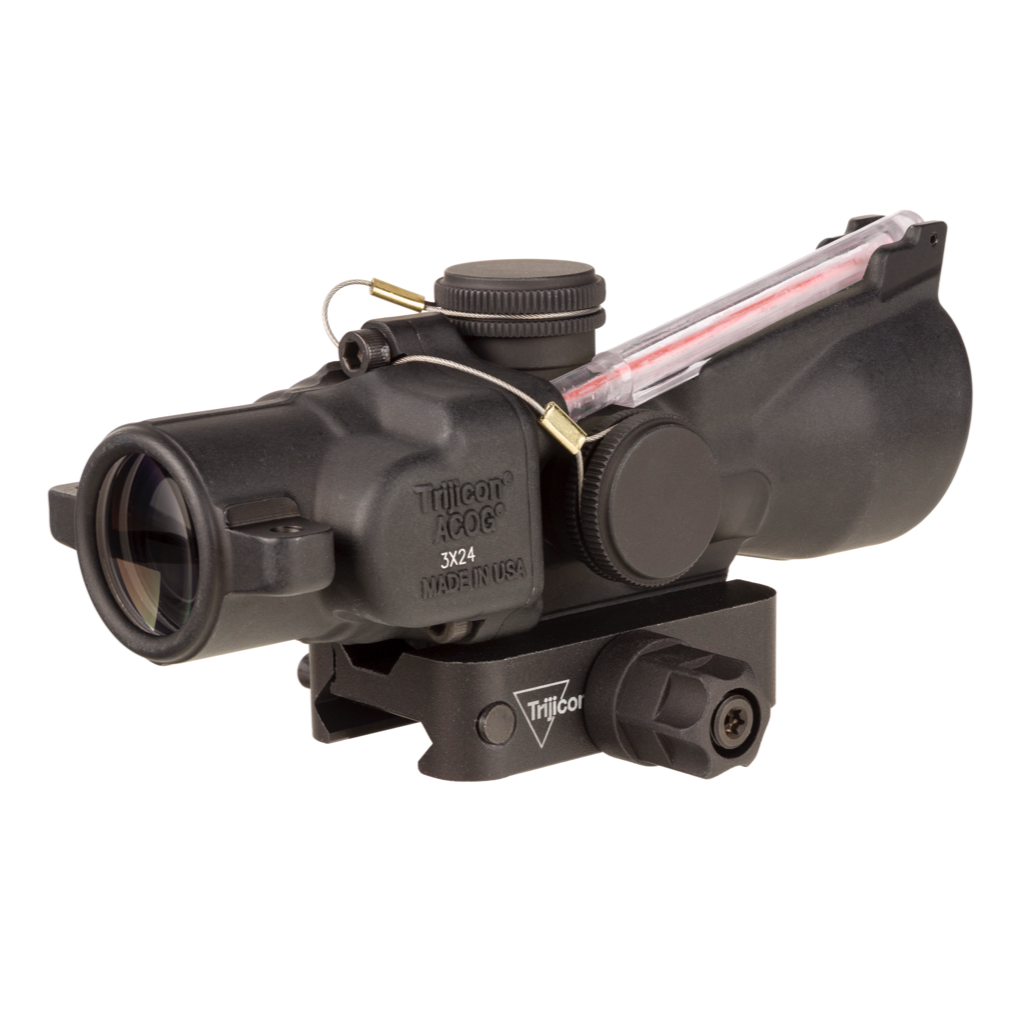

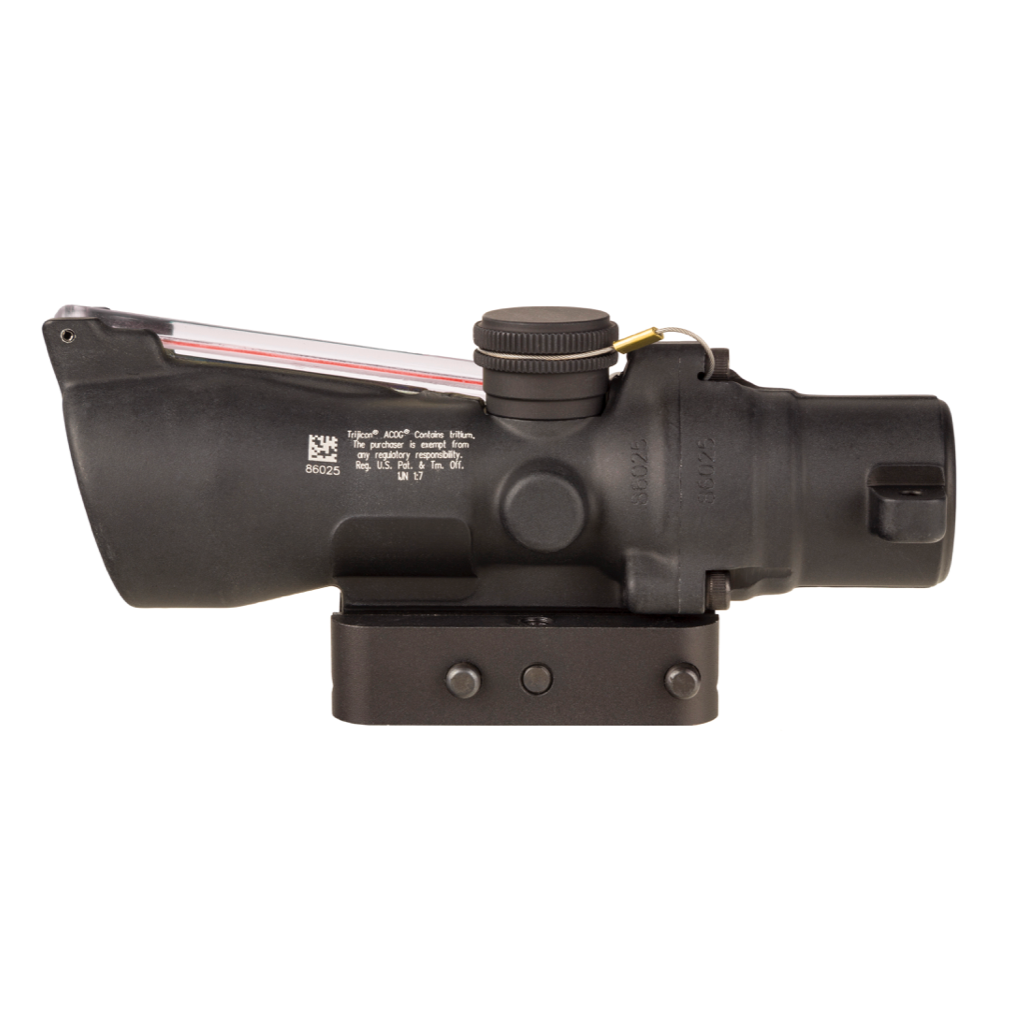

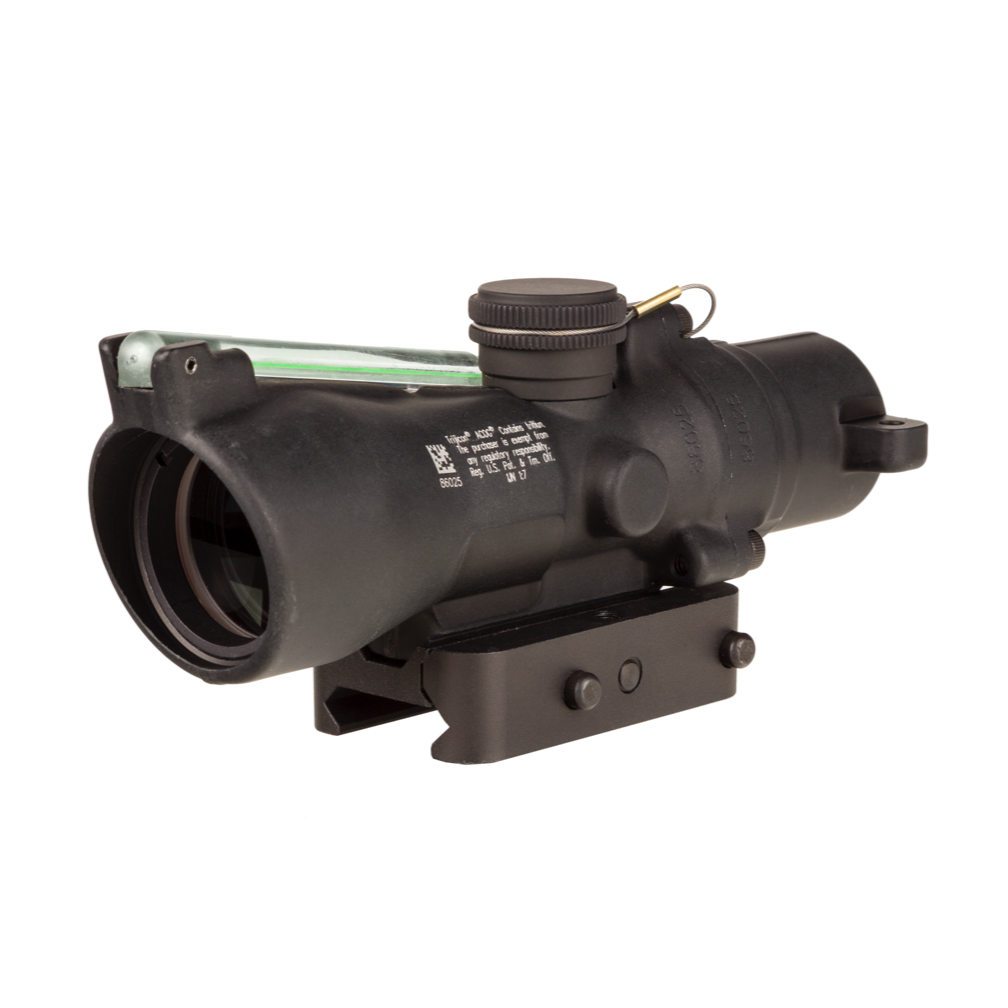

Compact ACOG® 3x24 (Low Height)

SKU: TRTA50-C-400362

Trijicon

$1,502.00 $1,089.66 Sale

The Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two...
Learn More >
Color
Black
Reticle Color
Green
Red
4 4
Available at checkout
{"id":8869017157786,"title":"Compact ACOG® 3x24 (Low Height)","handle":"compact-acog-3x24-low-height-1","description":"\u003cp data-pm-slice=\"1 1 []\"\u003eThe Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eThis Product is subject to ITAR\/EAR Export Controls. Please visit our ITAR\/EAR page (\u003cu\u003e\u003ca href=\"https:\/\/www.hcctac.com\/pages\/itar-ear-statement\" rel=\"noopener noreferrer nofollow\"\u003e\u003cspan style=\"color: rgb(138, 19, 0);\"\u003eclick here\u003c\/span\u003e\u003c\/a\u003e\u003c\/u\u003e) or \u003cspan style=\"color: rgb(138, 19, 0);\"\u003e\u003cu\u003e\u003ca href=\"https:\/\/www.hcctac.com\/pages\/contact-us\" rel=\"noopener noreferrer nofollow\" style=\"color: rgb(138, 19, 0);\"\u003eContact Us\u003c\/a\u003e\u003c\/u\u003e\u003c\/span\u003e for more Information.\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp data-pm-slice=\"1 3 []\"\u003eMounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR® (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.\u003c\/p\u003e\n\u003cp\u003eThe Trijicon Compact ACOG Mount w\/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.\u003c\/p\u003e\n\u003cp\u003eThe mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTorque Spec (to rail):\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eSpring Tension Only: 12-16 in. \/ lbs.\u003c\/li\u003e\n\u003cli\u003eCan be Tightened To: 30-38 in. \/ lbs.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eFEATURES:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli data-section-id=\"1721t4t\" data-start=\"47\" data-end=\"233\"\u003e\n\u003cstrong data-start=\"49\" data-end=\"77\"\u003eAlways On, Always Ready:\u003c\/strong\u003e Most ACOG® models are battery-free, featuring a tritium and fibre optic illuminated reticle that automatically adjusts brightness based on available light.\u003c\/li\u003e\n\u003cli data-section-id=\"1caxhfo\" data-start=\"234\" data-end=\"423\"\u003e\n\u003cstrong data-start=\"236\" data-end=\"253\"\u003eTake Control:\u003c\/strong\u003e Select ACOG models offer user-adjustable brightness settings powered by a single AA battery. The 3.5×35 LED and 4×32 LED models feature six adjustable brightness levels.\u003c\/li\u003e\n\u003cli data-section-id=\"e4ckpw\" data-start=\"424\" data-end=\"573\"\u003e\n\u003cstrong data-start=\"426\" data-end=\"462\"\u003eRugged, Reliable Housing Design:\u003c\/strong\u003e Fixed-power design with minimal moving parts creates an extremely durable and highly reliable sighting system.\u003c\/li\u003e\n\u003cli data-section-id=\"17qzuno\" data-start=\"574\" data-end=\"731\"\u003e\n\u003cstrong data-start=\"576\" data-end=\"602\"\u003eBoth-Eyes-Open Design:\u003c\/strong\u003e Trijicon’s Bindon Aiming Concept™ (BAC) allows for both-eyes-open shooting, improving situational awareness and target tracking.\u003c\/li\u003e\n\u003cli data-section-id=\"t7fw52\" data-start=\"732\" data-end=\"884\"\u003e\n\u003cstrong data-start=\"734\" data-end=\"758\"\u003eOutstanding Clarity:\u003c\/strong\u003e Multi-coated lenses and high-quality glass maximize light transmission, providing a clear field of view with zero distortion.\u003c\/li\u003e\n\u003cli data-section-id=\"wciitb\" data-start=\"885\" data-end=\"1022\"\u003e\n\u003cstrong data-start=\"887\" data-end=\"922\"\u003eExact Target Distances \u0026amp; Holds:\u003c\/strong\u003e Bullet drop compensating and target-ranging reticles support precise aiming and accurate holdovers.\u003c\/li\u003e\n\u003cli data-section-id=\"8x4mcw\" data-start=\"1023\" data-end=\"1118\"\u003e\n\u003cstrong data-start=\"1025\" data-end=\"1043\"\u003eCombat Proven:\u003c\/strong\u003e No other magnified optic has seen more extensive combat use than the ACOG.\u003c\/li\u003e\n\u003cli data-section-id=\"1smcdis\" data-start=\"1119\" data-end=\"1244\"\u003e\n\u003cstrong data-start=\"1121\" data-end=\"1141\"\u003eShock-Resistant:\u003c\/strong\u003e Designed to withstand recoil from .22 LR up to .50 BMG and meets U.S. military drop test requirements.\u003c\/li\u003e\n\u003cli data-section-id=\"4a35vt\" data-start=\"1245\" data-end=\"1393\"\u003e\n\u003cstrong data-start=\"1247\" data-end=\"1262\"\u003eWaterproof:\u003c\/strong\u003e Exceeds military standards with a dry nitrogen-filled housing that prevents fogging and ensures performance in extreme conditions.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eSPECIFICATIONS:\u003cbr\u003e\u003c\/strong\u003e\u003cstrong\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli data-section-id=\"cx5z2b\" data-start=\"40\" data-end=\"129\"\u003e\n\u003cstrong data-start=\"42\" data-end=\"70\"\u003eLength x Width x Height:\u003c\/strong\u003e 4.9 in x 2.2 in x 2.3 in (124.46 mm x 55.88 mm x 58.42 mm)\u003c\/li\u003e\n\u003cli data-section-id=\"dm2tub\" data-start=\"130\" data-end=\"161\"\u003e\n\u003cstrong data-start=\"132\" data-end=\"143\"\u003eWeight:\u003c\/strong\u003e 7.9 oz (223.96 g)\u003c\/li\u003e\n\u003cli data-section-id=\"uie410\" data-start=\"162\" data-end=\"185\"\u003e\n\u003cstrong data-start=\"164\" data-end=\"182\"\u003eMagnification:\u003c\/strong\u003e 3x\u003c\/li\u003e\n\u003cli data-section-id=\"bg2hwe\" data-start=\"186\" data-end=\"213\"\u003e\n\u003cstrong data-start=\"188\" data-end=\"207\"\u003eObjective Size:\u003c\/strong\u003e 24 mm\u003c\/li\u003e\n\u003cli data-section-id=\"qfhnw7\" data-start=\"214\" data-end=\"250\"\u003e\n\u003cstrong data-start=\"216\" data-end=\"236\"\u003eReticle Pattern:\u003c\/strong\u003e Horseshoe Dot\u003c\/li\u003e\n\u003cli data-section-id=\"1e65g3k\" data-start=\"251\" data-end=\"279\"\u003e\n\u003cstrong data-start=\"253\" data-end=\"275\"\u003eDay Reticle Color:\u003c\/strong\u003e Red\u003c\/li\u003e\n\u003cli data-section-id=\"zpht4w\" data-start=\"280\" data-end=\"310\"\u003e\n\u003cstrong data-start=\"282\" data-end=\"306\"\u003eNight Reticle Color:\u003c\/strong\u003e Red\u003c\/li\u003e\n\u003cli data-section-id=\"5gc3hm\" data-start=\"311\" data-end=\"352\"\u003e\n\u003cstrong data-start=\"313\" data-end=\"348\"\u003eBullet Drop Compensating (BDC):\u003c\/strong\u003e Yes\u003c\/li\u003e\n\u003cli data-section-id=\"rp145g\" data-start=\"353\" data-end=\"398\"\u003e\n\u003cstrong data-start=\"355\" data-end=\"381\"\u003eCaliber Compatibility:\u003c\/strong\u003e 7.62×39 \/ 123 gr\u003c\/li\u003e\n\u003cli data-section-id=\"ytwt15\" data-start=\"399\" data-end=\"437\"\u003e\n\u003cstrong data-start=\"401\" data-end=\"433\"\u003eBindon Aiming Concept (BAC):\u003c\/strong\u003e Yes\u003c\/li\u003e\n\u003cli data-section-id=\"1c3g29s\" data-start=\"438\" data-end=\"487\"\u003e\n\u003cstrong data-start=\"440\" data-end=\"464\"\u003eIllumination Source:\u003c\/strong\u003e Fibre optics \u0026amp; tritium\u003c\/li\u003e\n\u003cli data-section-id=\"yxv1hw\" data-start=\"488\" data-end=\"530\"\u003e\n\u003cstrong data-start=\"490\" data-end=\"507\"\u003ePower Source:\u003c\/strong\u003e Fibre optics \u0026amp; tritium\u003c\/li\u003e\n\u003cli data-section-id=\"11ynepo\" data-start=\"531\" data-end=\"566\"\u003e\n\u003cstrong data-start=\"533\" data-end=\"548\"\u003eAdjustment:\u003c\/strong\u003e 0.5 MOA per click\u003c\/li\u003e\n\u003cli data-section-id=\"14ayx5o\" data-start=\"567\" data-end=\"602\"\u003e\n\u003cstrong data-start=\"569\" data-end=\"584\"\u003eEye Relief:\u003c\/strong\u003e 1.4 in (35.56 mm)\u003c\/li\u003e\n\u003cli data-section-id=\"r1v4of\" data-start=\"603\" data-end=\"638\"\u003e\n\u003cstrong data-start=\"605\" data-end=\"620\"\u003eExit Pupil:\u003c\/strong\u003e 0.32 in (8.13 mm)\u003c\/li\u003e\n\u003cli data-section-id=\"9g1vsf\" data-start=\"639\" data-end=\"674\"\u003e\n\u003cstrong data-start=\"641\" data-end=\"669\"\u003eField of View (Degrees):\u003c\/strong\u003e 5.6°\u003c\/li\u003e\n\u003cli data-section-id=\"1f2b2tx\" data-start=\"675\" data-end=\"737\"\u003e\n\u003cstrong data-start=\"677\" data-end=\"702\"\u003eField of View (Feet):\u003c\/strong\u003e 25.6 ft @ 100 yds (8.53 m @ 100 m)\u003c\/li\u003e\n\u003cli data-section-id=\"x7889w\" data-start=\"738\" data-end=\"783\"\u003e\n\u003cstrong data-start=\"740\" data-end=\"750\"\u003eMount:\u003c\/strong\u003e Trijicon Q-LOC™ technology mount\u003c\/li\u003e\n\u003cli data-section-id=\"1a7n8r3\" data-start=\"784\" data-end=\"823\"\u003e\n\u003cstrong data-start=\"786\" data-end=\"807\"\u003eHousing Material:\u003c\/strong\u003e Forged aluminum\u003c\/li\u003e\n\u003cli data-section-id=\"1pa2p5b\" data-start=\"824\" data-end=\"849\"\u003e\n\u003cstrong data-start=\"826\" data-end=\"837\"\u003eFinish:\u003c\/strong\u003e Matte black\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eINCLUDES:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul data-pm-slice=\"3 3 []\"\u003e\n\u003cli\u003eTrijicon Q-LOC™ Technology Mount\u003c\/li\u003e\n\u003cli\u003eCompact ACOG Scopecoat (TA62)\u003c\/li\u003e\n\u003cli\u003eLENSPEN (TA56)\u003c\/li\u003e\n\u003cli\u003eTrijicon Logo Sticker (PR15)\u003c\/li\u003e\n\u003cli\u003eACOG Manual\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch4\u003eProduct Downloads\u003c\/h4\u003e\n\u003cul\u003e\n\u003cli data-pm-slice='1 1 [\"bullet_list\",null,\"list_item\",null]'\u003e\u003ca rel=\"noopener\" href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1664\/1057\/files\/PML4036-1_Rev_3__ACOG_Family_Spec_Sheet_single_8d9d1403-e569-4feb-9eaf-924ff2293c78.pdf?v=1736343939\" target=\"_blank\"\u003eACOG Spec Sheet\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e","published_at":"2026-06-03T09:44:41-04:00","created_at":"2026-03-24T07:26:06-04:00","vendor":"Trijicon","type":"Electronic Optics","tags":["EAR","ECCN 0A504.a","Fixed Mag.","Trijicon"],"price":108966,"price_min":108966,"price_max":108966,"available":false,"price_varies":false,"compare_at_price":150200,"compare_at_price_min":150200,"compare_at_price_max":150200,"compare_at_price_varies":false,"variants":[{"id":47669803450522,"title":"Black \/ Green","option1":"Black","option2":"Green","option3":null,"sku":"TRTA50-C-400362","requires_shipping":true,"taxable":true,"featured_image":{"id":48122555138202,"product_id":8869017157786,"position":2,"created_at":"2026-03-24T07:37:57-04:00","updated_at":"2026-03-24T07:39:05-04:00","alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v - HCC Tactical","width":796,"height":796,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.37.45.png?v=1774352345","variant_ids":[47669803450522]},"available":false,"name":"Compact ACOG® 3x24 (Low Height) - Black \/ Green","public_title":"Black \/ Green","options":["Black","Green"],"price":108966,"weight":567,"compare_at_price":150200,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":null,"featured_media":{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v - HCC Tactical","id":36599966269594,"position":2,"preview_image":{"aspect_ratio":1.0,"height":796,"width":796,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.37.45.png?v=1774352345"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}},{"id":47669819211930,"title":"Black \/ Red","option1":"Black","option2":"Red","option3":null,"sku":"TRTA50-C-400360","requires_shipping":true,"taxable":true,"featured_image":{"id":48122555203738,"product_id":8869017157786,"position":3,"created_at":"2026-03-24T07:38:42-04:00","updated_at":"2026-03-24T07:39:58-04:00","alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v2 - HCC Tactical","width":796,"height":796,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.38.24.png?v=1774352398","variant_ids":[47669819211930]},"available":false,"name":"Compact ACOG® 3x24 (Low Height) - Black \/ Red","public_title":"Black \/ Red","options":["Black","Red"],"price":108966,"weight":567,"compare_at_price":150200,"inventory_quantity":0,"inventory_management":"shopify","inventory_policy":"deny","barcode":"","featured_media":{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v2 - HCC Tactical","id":36599966335130,"position":3,"preview_image":{"aspect_ratio":1.0,"height":796,"width":796,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.38.24.png?v=1774352398"}},"requires_selling_plan":false,"selling_plan_allocations":[],"quantity_rule":{"min":1,"max":null,"increment":1}}],"images":["\/\/www.hcctac.com\/cdn\/shop\/files\/217460412.png?v=1774351930","\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.37.45.png?v=1774352345","\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.38.24.png?v=1774352398","\/\/www.hcctac.com\/cdn\/shop\/files\/217460415.png?v=1774352350","\/\/www.hcctac.com\/cdn\/shop\/files\/217460411.png?v=1774352350","\/\/www.hcctac.com\/cdn\/shop\/files\/217460414.png?v=1774352350","\/\/www.hcctac.com\/cdn\/shop\/files\/217460413.png?v=1774352350","\/\/www.hcctac.com\/cdn\/shop\/files\/217460410.png?v=1774352350"],"featured_image":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460412.png?v=1774351930","options":["Color","Reticle Color"],"media":[{"alt":"Black; Trijicon - Compact ACOG® 3x24 (Low Height) - HCC Tactical","id":36599961583770,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1008,"width":1008,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460412.png?v=1774351930"},"aspect_ratio":1.0,"height":1008,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460412.png?v=1774351930","width":1008},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v - HCC Tactical","id":36599966269594,"position":2,"preview_image":{"aspect_ratio":1.0,"height":796,"width":796,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.37.45.png?v=1774352345"},"aspect_ratio":1.0,"height":796,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.37.45.png?v=1774352345","width":796},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v2 - HCC Tactical","id":36599966335130,"position":3,"preview_image":{"aspect_ratio":1.0,"height":796,"width":796,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.38.24.png?v=1774352398"},"aspect_ratio":1.0,"height":796,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/Screenshot_2026-03-24_at_13.38.24.png?v=1774352398","width":796},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v3 - HCC Tactical","id":36599961682074,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460415.png?v=1774352350"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460415.png?v=1774352350","width":1010},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v4 - HCC Tactical","id":36599961551002,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1016,"width":1016,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460411.png?v=1774352350"},"aspect_ratio":1.0,"height":1016,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460411.png?v=1774352350","width":1016},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v5 - HCC Tactical","id":36599961649306,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1010,"width":1010,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460414.png?v=1774352350"},"aspect_ratio":1.0,"height":1010,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460414.png?v=1774352350","width":1010},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v6 - HCC Tactical","id":36599961616538,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1014,"width":1014,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460413.png?v=1774352350"},"aspect_ratio":1.0,"height":1014,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460413.png?v=1774352350","width":1014},{"alt":"Trijicon - Compact ACOG® 3x24 (Low Height) - v7 - HCC Tactical","id":36599961518234,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1012,"width":1012,"src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460410.png?v=1774352350"},"aspect_ratio":1.0,"height":1012,"media_type":"image","src":"\/\/www.hcctac.com\/cdn\/shop\/files\/217460410.png?v=1774352350","width":1012}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp data-pm-slice=\"1 1 []\"\u003eThe Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG.\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eThis Product is subject to ITAR\/EAR Export Controls. Please visit our ITAR\/EAR page (\u003cu\u003e\u003ca href=\"https:\/\/www.hcctac.com\/pages\/itar-ear-statement\" rel=\"noopener noreferrer nofollow\"\u003e\u003cspan style=\"color: rgb(138, 19, 0);\"\u003eclick here\u003c\/span\u003e\u003c\/a\u003e\u003c\/u\u003e) or \u003cspan style=\"color: rgb(138, 19, 0);\"\u003e\u003cu\u003e\u003ca href=\"https:\/\/www.hcctac.com\/pages\/contact-us\" rel=\"noopener noreferrer nofollow\" style=\"color: rgb(138, 19, 0);\"\u003eContact Us\u003c\/a\u003e\u003c\/u\u003e\u003c\/span\u003e for more Information.\u003c\/strong\u003e\u003c\/p\u003e\n\u003cp data-pm-slice=\"1 3 []\"\u003eMounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR® (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.\u003c\/p\u003e\n\u003cp\u003eThe Trijicon Compact ACOG Mount w\/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.\u003c\/p\u003e\n\u003cp\u003eThe mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.\u003cbr\u003e\u003c\/p\u003e\n\u003cp\u003e\u003cstrong\u003eTorque Spec (to rail):\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli\u003eSpring Tension Only: 12-16 in. \/ lbs.\u003c\/li\u003e\n\u003cli\u003eCan be Tightened To: 30-38 in. \/ lbs.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eFEATURES:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli data-section-id=\"1721t4t\" data-start=\"47\" data-end=\"233\"\u003e\n\u003cstrong data-start=\"49\" data-end=\"77\"\u003eAlways On, Always Ready:\u003c\/strong\u003e Most ACOG® models are battery-free, featuring a tritium and fibre optic illuminated reticle that automatically adjusts brightness based on available light.\u003c\/li\u003e\n\u003cli data-section-id=\"1caxhfo\" data-start=\"234\" data-end=\"423\"\u003e\n\u003cstrong data-start=\"236\" data-end=\"253\"\u003eTake Control:\u003c\/strong\u003e Select ACOG models offer user-adjustable brightness settings powered by a single AA battery. The 3.5×35 LED and 4×32 LED models feature six adjustable brightness levels.\u003c\/li\u003e\n\u003cli data-section-id=\"e4ckpw\" data-start=\"424\" data-end=\"573\"\u003e\n\u003cstrong data-start=\"426\" data-end=\"462\"\u003eRugged, Reliable Housing Design:\u003c\/strong\u003e Fixed-power design with minimal moving parts creates an extremely durable and highly reliable sighting system.\u003c\/li\u003e\n\u003cli data-section-id=\"17qzuno\" data-start=\"574\" data-end=\"731\"\u003e\n\u003cstrong data-start=\"576\" data-end=\"602\"\u003eBoth-Eyes-Open Design:\u003c\/strong\u003e Trijicon’s Bindon Aiming Concept™ (BAC) allows for both-eyes-open shooting, improving situational awareness and target tracking.\u003c\/li\u003e\n\u003cli data-section-id=\"t7fw52\" data-start=\"732\" data-end=\"884\"\u003e\n\u003cstrong data-start=\"734\" data-end=\"758\"\u003eOutstanding Clarity:\u003c\/strong\u003e Multi-coated lenses and high-quality glass maximize light transmission, providing a clear field of view with zero distortion.\u003c\/li\u003e\n\u003cli data-section-id=\"wciitb\" data-start=\"885\" data-end=\"1022\"\u003e\n\u003cstrong data-start=\"887\" data-end=\"922\"\u003eExact Target Distances \u0026amp; Holds:\u003c\/strong\u003e Bullet drop compensating and target-ranging reticles support precise aiming and accurate holdovers.\u003c\/li\u003e\n\u003cli data-section-id=\"8x4mcw\" data-start=\"1023\" data-end=\"1118\"\u003e\n\u003cstrong data-start=\"1025\" data-end=\"1043\"\u003eCombat Proven:\u003c\/strong\u003e No other magnified optic has seen more extensive combat use than the ACOG.\u003c\/li\u003e\n\u003cli data-section-id=\"1smcdis\" data-start=\"1119\" data-end=\"1244\"\u003e\n\u003cstrong data-start=\"1121\" data-end=\"1141\"\u003eShock-Resistant:\u003c\/strong\u003e Designed to withstand recoil from .22 LR up to .50 BMG and meets U.S. military drop test requirements.\u003c\/li\u003e\n\u003cli data-section-id=\"4a35vt\" data-start=\"1245\" data-end=\"1393\"\u003e\n\u003cstrong data-start=\"1247\" data-end=\"1262\"\u003eWaterproof:\u003c\/strong\u003e Exceeds military standards with a dry nitrogen-filled housing that prevents fogging and ensures performance in extreme conditions.\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eSPECIFICATIONS:\u003cbr\u003e\u003c\/strong\u003e\u003cstrong\u003e\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul\u003e\n\u003cli data-section-id=\"cx5z2b\" data-start=\"40\" data-end=\"129\"\u003e\n\u003cstrong data-start=\"42\" data-end=\"70\"\u003eLength x Width x Height:\u003c\/strong\u003e 4.9 in x 2.2 in x 2.3 in (124.46 mm x 55.88 mm x 58.42 mm)\u003c\/li\u003e\n\u003cli data-section-id=\"dm2tub\" data-start=\"130\" data-end=\"161\"\u003e\n\u003cstrong data-start=\"132\" data-end=\"143\"\u003eWeight:\u003c\/strong\u003e 7.9 oz (223.96 g)\u003c\/li\u003e\n\u003cli data-section-id=\"uie410\" data-start=\"162\" data-end=\"185\"\u003e\n\u003cstrong data-start=\"164\" data-end=\"182\"\u003eMagnification:\u003c\/strong\u003e 3x\u003c\/li\u003e\n\u003cli data-section-id=\"bg2hwe\" data-start=\"186\" data-end=\"213\"\u003e\n\u003cstrong data-start=\"188\" data-end=\"207\"\u003eObjective Size:\u003c\/strong\u003e 24 mm\u003c\/li\u003e\n\u003cli data-section-id=\"qfhnw7\" data-start=\"214\" data-end=\"250\"\u003e\n\u003cstrong data-start=\"216\" data-end=\"236\"\u003eReticle Pattern:\u003c\/strong\u003e Horseshoe Dot\u003c\/li\u003e\n\u003cli data-section-id=\"1e65g3k\" data-start=\"251\" data-end=\"279\"\u003e\n\u003cstrong data-start=\"253\" data-end=\"275\"\u003eDay Reticle Color:\u003c\/strong\u003e Red\u003c\/li\u003e\n\u003cli data-section-id=\"zpht4w\" data-start=\"280\" data-end=\"310\"\u003e\n\u003cstrong data-start=\"282\" data-end=\"306\"\u003eNight Reticle Color:\u003c\/strong\u003e Red\u003c\/li\u003e\n\u003cli data-section-id=\"5gc3hm\" data-start=\"311\" data-end=\"352\"\u003e\n\u003cstrong data-start=\"313\" data-end=\"348\"\u003eBullet Drop Compensating (BDC):\u003c\/strong\u003e Yes\u003c\/li\u003e\n\u003cli data-section-id=\"rp145g\" data-start=\"353\" data-end=\"398\"\u003e\n\u003cstrong data-start=\"355\" data-end=\"381\"\u003eCaliber Compatibility:\u003c\/strong\u003e 7.62×39 \/ 123 gr\u003c\/li\u003e\n\u003cli data-section-id=\"ytwt15\" data-start=\"399\" data-end=\"437\"\u003e\n\u003cstrong data-start=\"401\" data-end=\"433\"\u003eBindon Aiming Concept (BAC):\u003c\/strong\u003e Yes\u003c\/li\u003e\n\u003cli data-section-id=\"1c3g29s\" data-start=\"438\" data-end=\"487\"\u003e\n\u003cstrong data-start=\"440\" data-end=\"464\"\u003eIllumination Source:\u003c\/strong\u003e Fibre optics \u0026amp; tritium\u003c\/li\u003e\n\u003cli data-section-id=\"yxv1hw\" data-start=\"488\" data-end=\"530\"\u003e\n\u003cstrong data-start=\"490\" data-end=\"507\"\u003ePower Source:\u003c\/strong\u003e Fibre optics \u0026amp; tritium\u003c\/li\u003e\n\u003cli data-section-id=\"11ynepo\" data-start=\"531\" data-end=\"566\"\u003e\n\u003cstrong data-start=\"533\" data-end=\"548\"\u003eAdjustment:\u003c\/strong\u003e 0.5 MOA per click\u003c\/li\u003e\n\u003cli data-section-id=\"14ayx5o\" data-start=\"567\" data-end=\"602\"\u003e\n\u003cstrong data-start=\"569\" data-end=\"584\"\u003eEye Relief:\u003c\/strong\u003e 1.4 in (35.56 mm)\u003c\/li\u003e\n\u003cli data-section-id=\"r1v4of\" data-start=\"603\" data-end=\"638\"\u003e\n\u003cstrong data-start=\"605\" data-end=\"620\"\u003eExit Pupil:\u003c\/strong\u003e 0.32 in (8.13 mm)\u003c\/li\u003e\n\u003cli data-section-id=\"9g1vsf\" data-start=\"639\" data-end=\"674\"\u003e\n\u003cstrong data-start=\"641\" data-end=\"669\"\u003eField of View (Degrees):\u003c\/strong\u003e 5.6°\u003c\/li\u003e\n\u003cli data-section-id=\"1f2b2tx\" data-start=\"675\" data-end=\"737\"\u003e\n\u003cstrong data-start=\"677\" data-end=\"702\"\u003eField of View (Feet):\u003c\/strong\u003e 25.6 ft @ 100 yds (8.53 m @ 100 m)\u003c\/li\u003e\n\u003cli data-section-id=\"x7889w\" data-start=\"738\" data-end=\"783\"\u003e\n\u003cstrong data-start=\"740\" data-end=\"750\"\u003eMount:\u003c\/strong\u003e Trijicon Q-LOC™ technology mount\u003c\/li\u003e\n\u003cli data-section-id=\"1a7n8r3\" data-start=\"784\" data-end=\"823\"\u003e\n\u003cstrong data-start=\"786\" data-end=\"807\"\u003eHousing Material:\u003c\/strong\u003e Forged aluminum\u003c\/li\u003e\n\u003cli data-section-id=\"1pa2p5b\" data-start=\"824\" data-end=\"849\"\u003e\n\u003cstrong data-start=\"826\" data-end=\"837\"\u003eFinish:\u003c\/strong\u003e Matte black\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003cp\u003e\u003cstrong\u003eINCLUDES:\u003c\/strong\u003e\u003c\/p\u003e\n\u003cul data-pm-slice=\"3 3 []\"\u003e\n\u003cli\u003eTrijicon Q-LOC™ Technology Mount\u003c\/li\u003e\n\u003cli\u003eCompact ACOG Scopecoat (TA62)\u003c\/li\u003e\n\u003cli\u003eLENSPEN (TA56)\u003c\/li\u003e\n\u003cli\u003eTrijicon Logo Sticker (PR15)\u003c\/li\u003e\n\u003cli\u003eACOG Manual\u003c\/li\u003e\n\u003c\/ul\u003e\n\u003ch4\u003eProduct Downloads\u003c\/h4\u003e\n\u003cul\u003e\n\u003cli data-pm-slice='1 1 [\"bullet_list\",null,\"list_item\",null]'\u003e\u003ca rel=\"noopener\" href=\"https:\/\/cdn.shopify.com\/s\/files\/1\/1664\/1057\/files\/PML4036-1_Rev_3__ACOG_Family_Spec_Sheet_single_8d9d1403-e569-4feb-9eaf-924ff2293c78.pdf?v=1736343939\" target=\"_blank\"\u003eACOG Spec Sheet\u003c\/a\u003e\u003c\/li\u003e\n\u003c\/ul\u003e"}

The Trijicon ACOG 3x24 Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG.

This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.

Mounting bosses are integrated into the housing (near the eyepiece) to allow the easy addition of a Trijicon RMR® (not included) with the RM54 mount (not included). No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps.

The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system. The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Torque Spec (to rail):

  • Spring Tension Only: 12-16 in. / lbs.
  • Can be Tightened To: 30-38 in. / lbs.

FEATURES:

  • Always On, Always Ready: Most ACOG® models are battery-free, featuring a tritium and fibre optic illuminated reticle that automatically adjusts brightness based on available light.
  • Take Control: Select ACOG models offer user-adjustable brightness settings powered by a single AA battery. The 3.5×35 LED and 4×32 LED models feature six adjustable brightness levels.
  • Rugged, Reliable Housing Design: Fixed-power design with minimal moving parts creates an extremely durable and highly reliable sighting system.
  • Both-Eyes-Open Design: Trijicon’s Bindon Aiming Concept™ (BAC) allows for both-eyes-open shooting, improving situational awareness and target tracking.
  • Outstanding Clarity: Multi-coated lenses and high-quality glass maximize light transmission, providing a clear field of view with zero distortion.
  • Exact Target Distances & Holds: Bullet drop compensating and target-ranging reticles support precise aiming and accurate holdovers.
  • Combat Proven: No other magnified optic has seen more extensive combat use than the ACOG.
  • Shock-Resistant: Designed to withstand recoil from .22 LR up to .50 BMG and meets U.S. military drop test requirements.
  • Waterproof: Exceeds military standards with a dry nitrogen-filled housing that prevents fogging and ensures performance in extreme conditions.

SPECIFICATIONS:

  • Length x Width x Height: 4.9 in x 2.2 in x 2.3 in (124.46 mm x 55.88 mm x 58.42 mm)
  • Weight: 7.9 oz (223.96 g)
  • Magnification: 3x
  • Objective Size: 24 mm

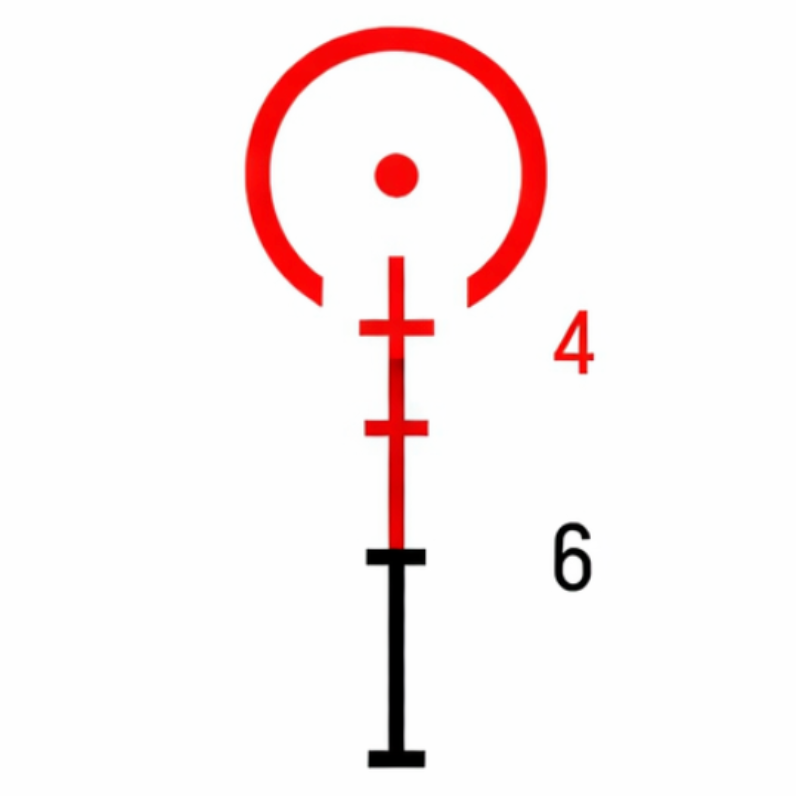

  • Reticle Pattern: Horseshoe Dot
  • Day Reticle Color: Red
  • Night Reticle Color: Red
  • Bullet Drop Compensating (BDC): Yes
  • Caliber Compatibility: 7.62×39 / 123 gr
  • Bindon Aiming Concept (BAC): Yes
  • Illumination Source: Fibre optics & tritium
  • Power Source: Fibre optics & tritium
  • Adjustment: 0.5 MOA per click
  • Eye Relief: 1.4 in (35.56 mm)
  • Exit Pupil: 0.32 in (8.13 mm)
  • Field of View (Degrees): 5.6°
  • Field of View (Feet): 25.6 ft @ 100 yds (8.53 m @ 100 m)
  • Mount: Trijicon Q-LOC™ technology mount
  • Housing Material: Forged aluminum
  • Finish: Matte black

INCLUDES:

  • Trijicon Q-LOC™ Technology Mount
  • Compact ACOG Scopecoat (TA62)
  • LENSPEN (TA56)
  • Trijicon Logo Sticker (PR15)
  • ACOG Manual
