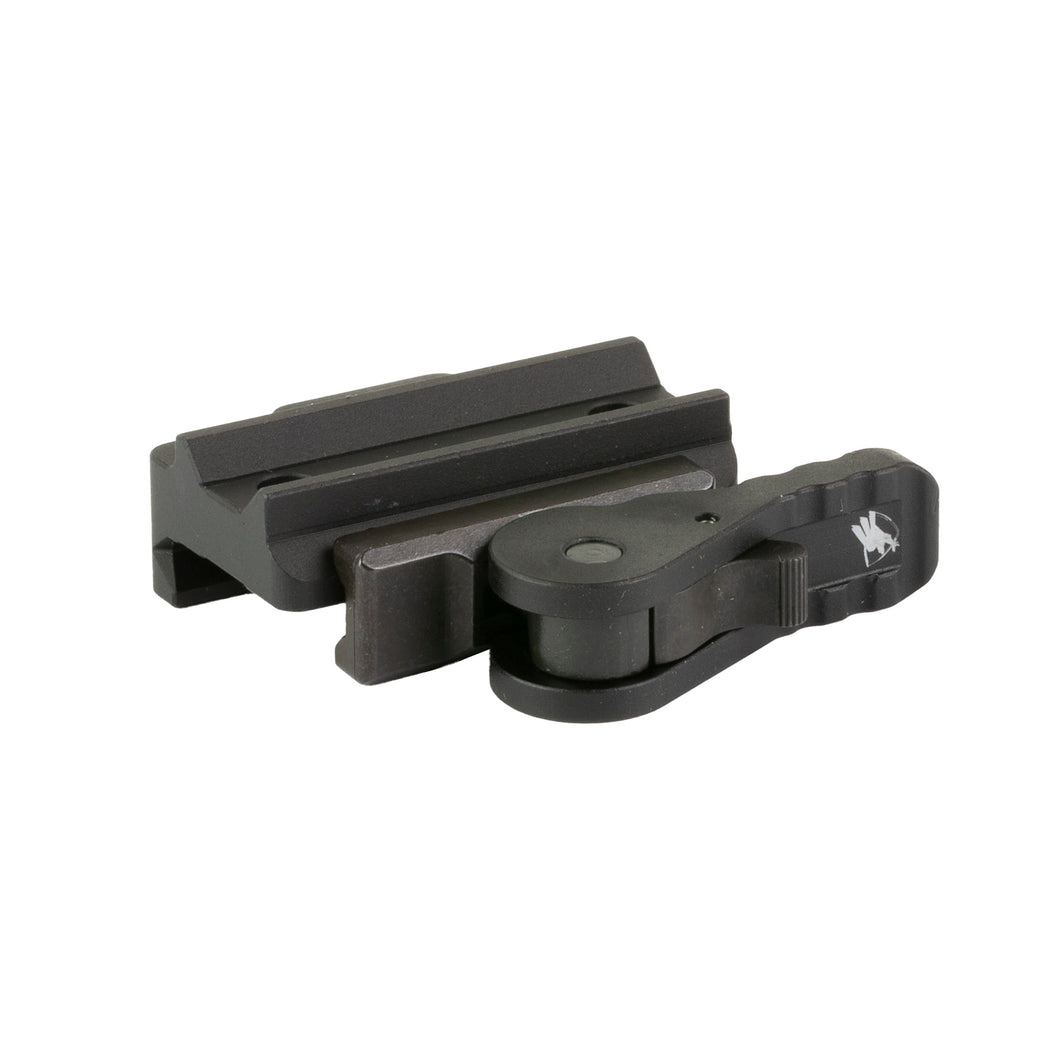

The AD-B2 Cantilever Mini ACOG QD Mount delivers a precision-engineered solution for optimizing sight positioning and eye relief. This single-piece cantilever design elevates your optic while pushing it rearward, eliminating the eye relief constraints typical of standard mounting configurations. The .75" reverse cantilever geometry positions the eyepiece significantly farther back, reducing interference and improving shooting ergonomics.
NOTE: The B2-L Mount features the same footprint as our standard B2 Mount, however the overall length has been shortened to match the SLX Micro Prism Scope
NOTE: **The B2-C and B2-S will not clear BUIS, only the B2-M and taller mounts will. The B2-M will only clear the Magpul MBUS Pro/ MBUS 3 Rear Sights and MI Combat Rear Sight**
Purpose-built for 1.5-3x Mini ACOG variants like the TA33 and TA44, it also accommodates Sightmark Wraith Mini and Primary Arms GLX/SLX micro prism scopes. Constructed from 6061 T6 aluminum with hard coat T3 Mil-Spec anodize for durability, the mount features a patented QD Auto Lock Titanium Lever system that secures reliably on both in-spec and out-of-spec rail systems. Compatible with third-party spacers for customization.
Features
The AD-B2 Cantilever Mount features the Patented QD Auto Lock Lever system which has the following advantages:
- Does not require proprietary tools for adjustment.
- Can be adjusted with your finger or a flat blade screwdriver.
- Lever can be configured to lock to the front or the rear.
- Superior clamping surface to insure maximum rail engagement.
Compatible with a wide range of optics
- EoTech Vudu 3x9 (28 inch lbs torque spec - per Eotech specifications)
- Trijicon Mini ACOG (TA33, TA44)
- Sightmark Wraith Mini
- Primary Arms GLx 2x & SLx 1x/3x Micro Prism Scopes
