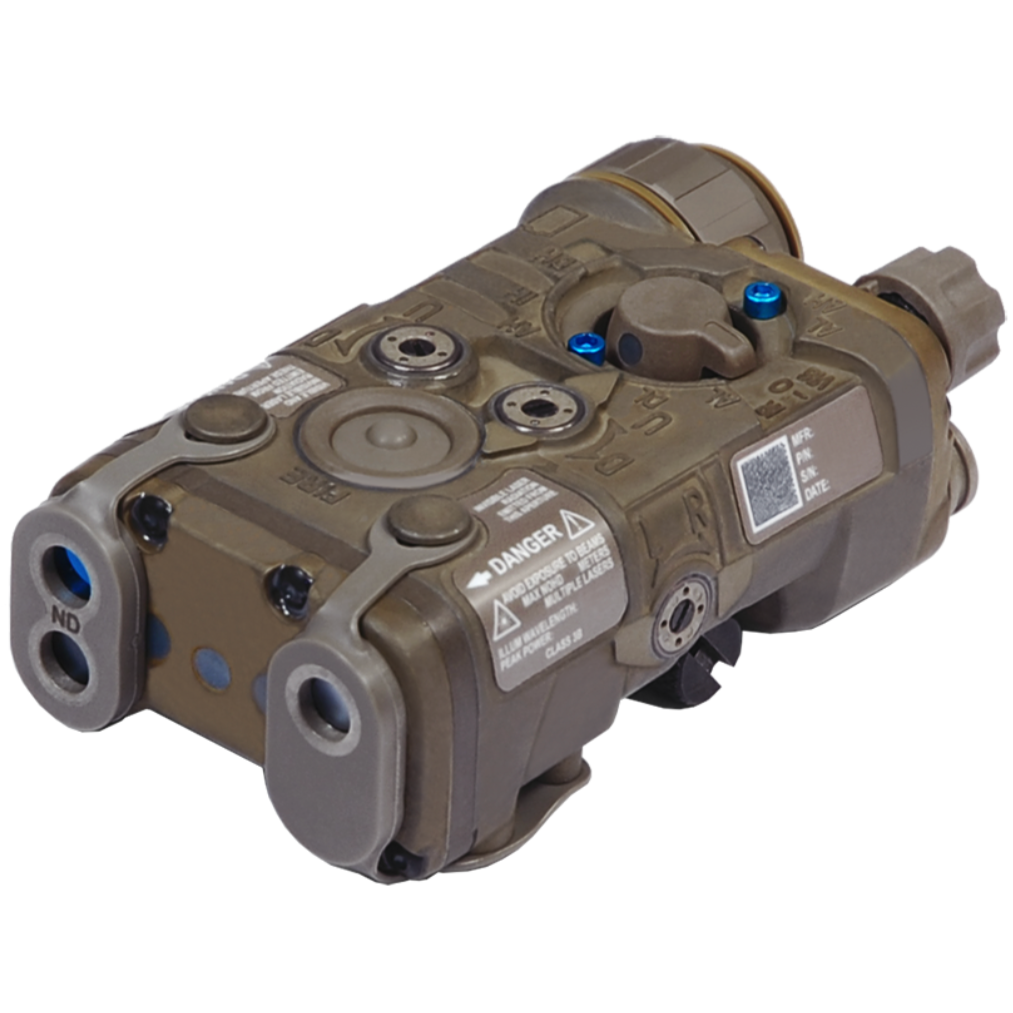

Next Generation Aiming Laser (NGAL)

SKU: NGL-000-A1

Regular price $4,099.00 Sale

  The L3Harris Next Generation Aiming Laser (NGAL) is a rugged, ultra-compact and lightweight system that is designed to be compatible with all generations of...
Learn More >
Color
FDE
Contact to order 6 6 6
Available at checkout



The L3Harris Next Generation Aiming Laser (NGAL) is a rugged, ultra-compact and lightweight system that is designed to be compatible with all generations of night vision devices.

This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.

FOR LE / MILITARY SALES ONLY.

CAPABILITIES:

The size of a credit card, NGAL uses an advanced illuminator design to achieve a more uniform near infrared illuminator beam for increased situational awareness. High-efficiency electronics support increased system performance at reduced size, weight and power.

KEY BENEFITS:

  • Independent aim and illuminator boresight adjusters
  • Co-aligned aiming beams with boresight retention ≤ 0.5 mrad
  • Power levels adjustable based on customer requirements

SPECIFICATIONS:

Dimensions 3.6 in. L x 2.0 in. W x 1.25 in. H
Weight < 5 oz. with battery
Battery Type (1) DL123 or AA
Battery Life 3.5 hrs. in dual high
Visible Aim Laser Specifications at 25 °C (77 °F)   Safety Class
Output Power Low ≤ 4.9 mW 3R
Output Power High ≤ 80 mW 3B
Beam Divergence 0.3 (±0.2) mrad
Wavelength 635 (±15) nm
IR Aim Laser Specifications at 25 °C (77 °F)  Safety Class
Output Power Low ≤ 0.6 mW 3R
Output Power High ≤ 35 mW 3B
Beam Divergence 0.3 (±0.20) mrad
Wavelength 840 (+15/-15) nm
IR Illuminator Specifications at 25 °C (77 °F) Safety Class
Output Power Low ≤ 2.7 mW
3R
Output Power High
≤ 90 mW 3B
Beam Divergence ≤ 15 to ≥ 105 mrad
Wavelength 860 (±15/-35) nm
