EOTech - Vudu 1-10x28 FFP - Vudu SR-4 MOA Reticle -  HCC Tactical

Vudu 1-10x28 Precision Rifle Scope

SKU: VDU1-10FFSR4

EOTech

Regular price $1,839.00 $1,749.00 Sale

Don’t like the price?

Contact Us
EOTECH’s Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile...
Learn More >
Reticle
5 5
Available at checkout

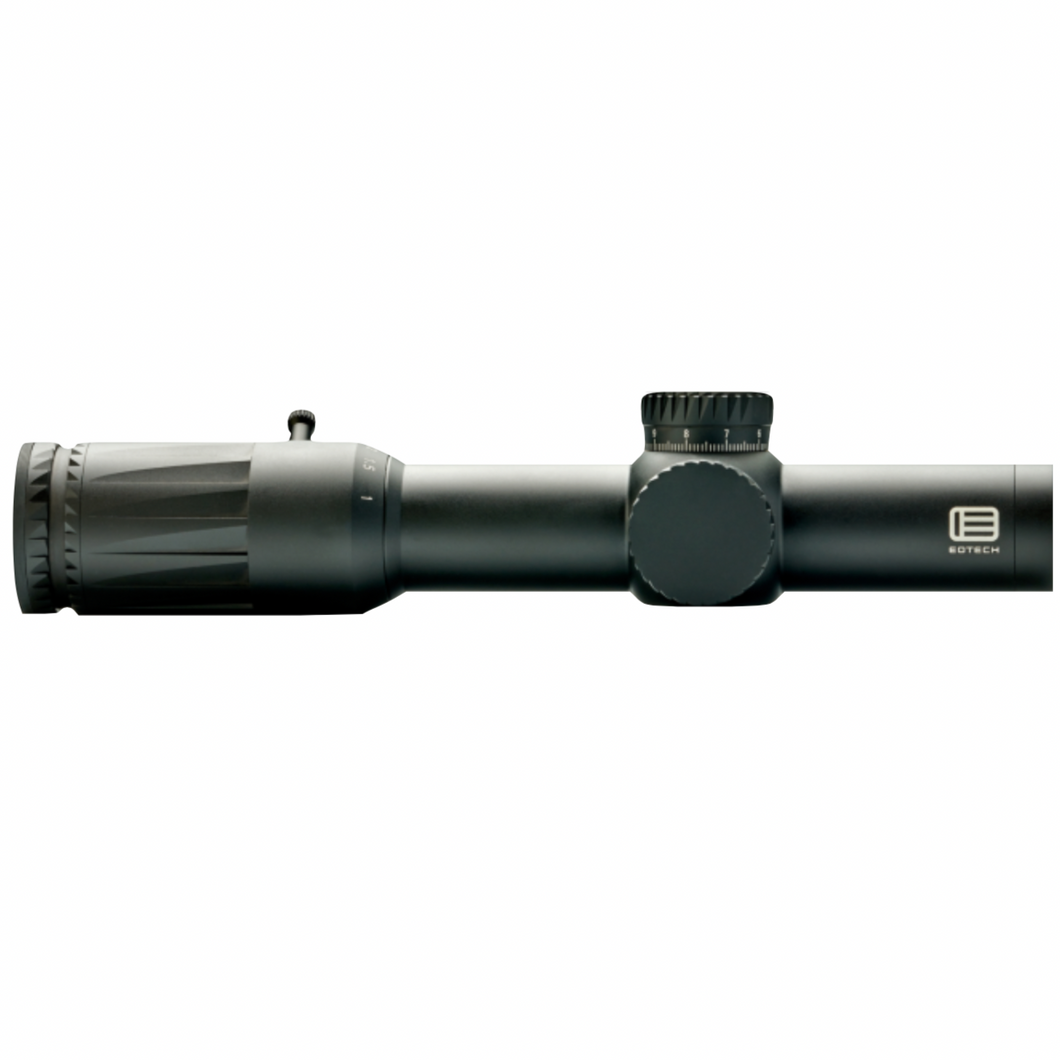

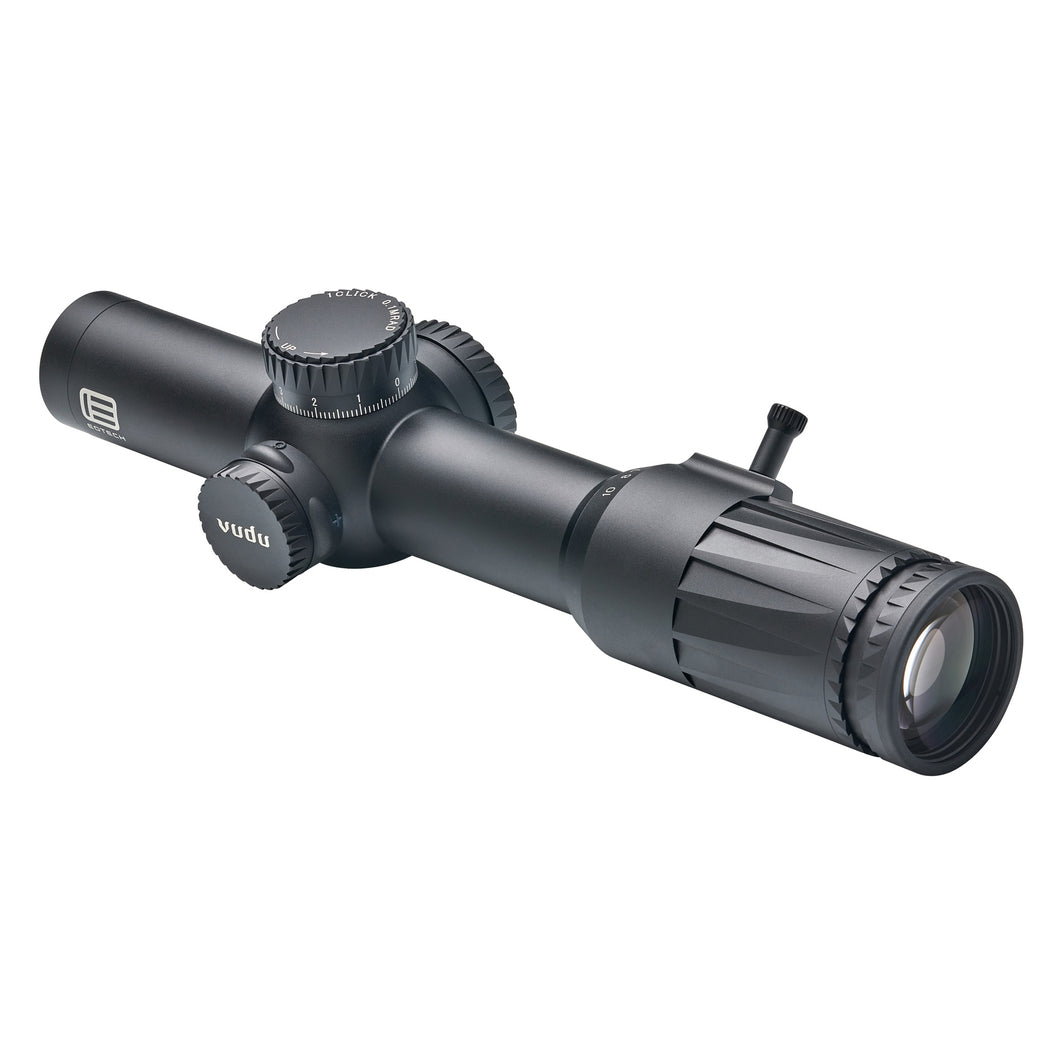

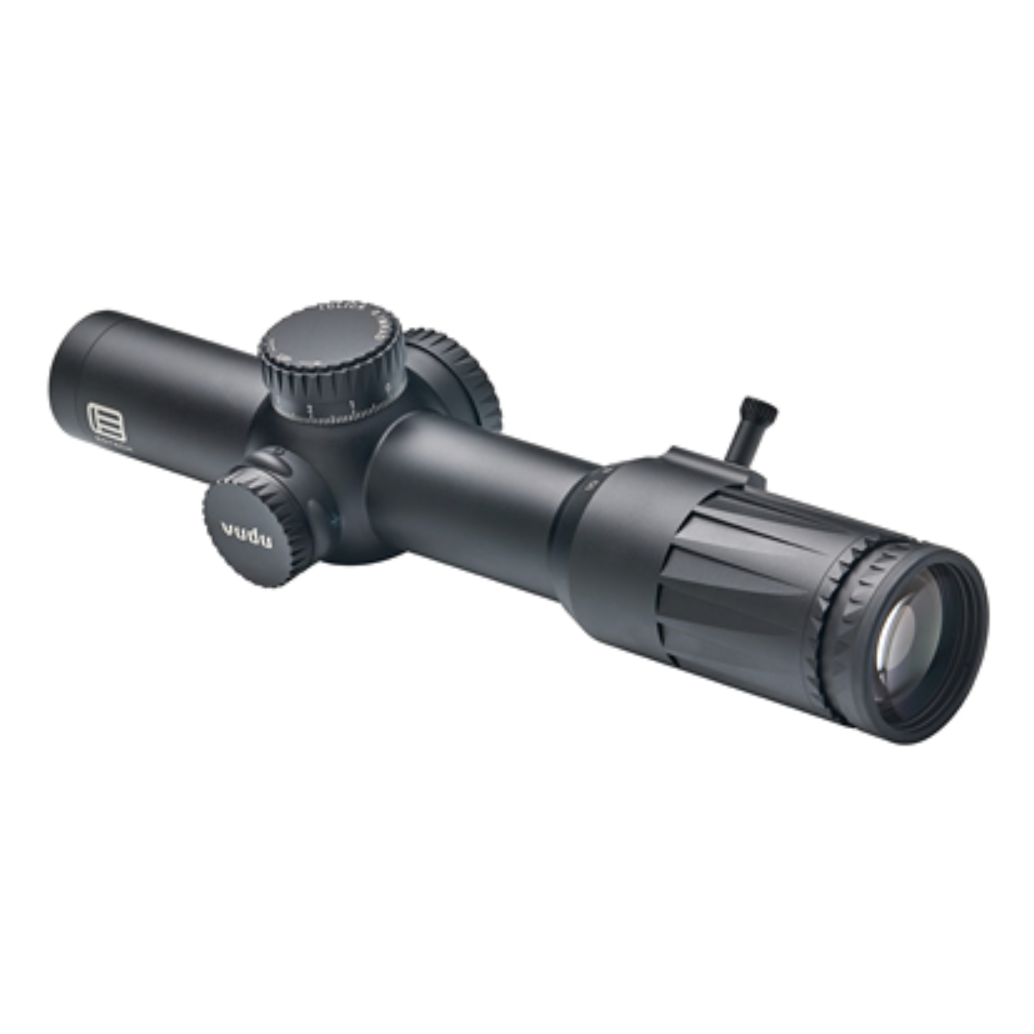

EOTECH’s Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.

This Product is subject to ITAR/EAR Export Controls. Please visit our ITAR/EAR page (click here) or Contact Us for more Information.

FEATURES:

  • Aircraft Grade - Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push- button illumination controls for simple manipulation.

  • Fog Resistant - Nitrogen gas purging prevents internal fogging over the operating temperature range.

  • Shock Resistant - The rugged design prevents damage from heavy recoil and rough handling.

  • Water Resistant - The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

  • Anti-Reflective Lenses - XC™ high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity..
  • Industrial Design - The sleek scalping design on the one-piece eye-piece allows for greater purchase and faster magnification adjustment and provides a removable throw lever for even better manipulation.

INCLUDED IN THE BOX:

  • Vudu® 1-10X28 Rifle Scope
  • Operator Manual
  • Reticle Manual
  • Throw Lever
  • Lens Cleaning Cloth

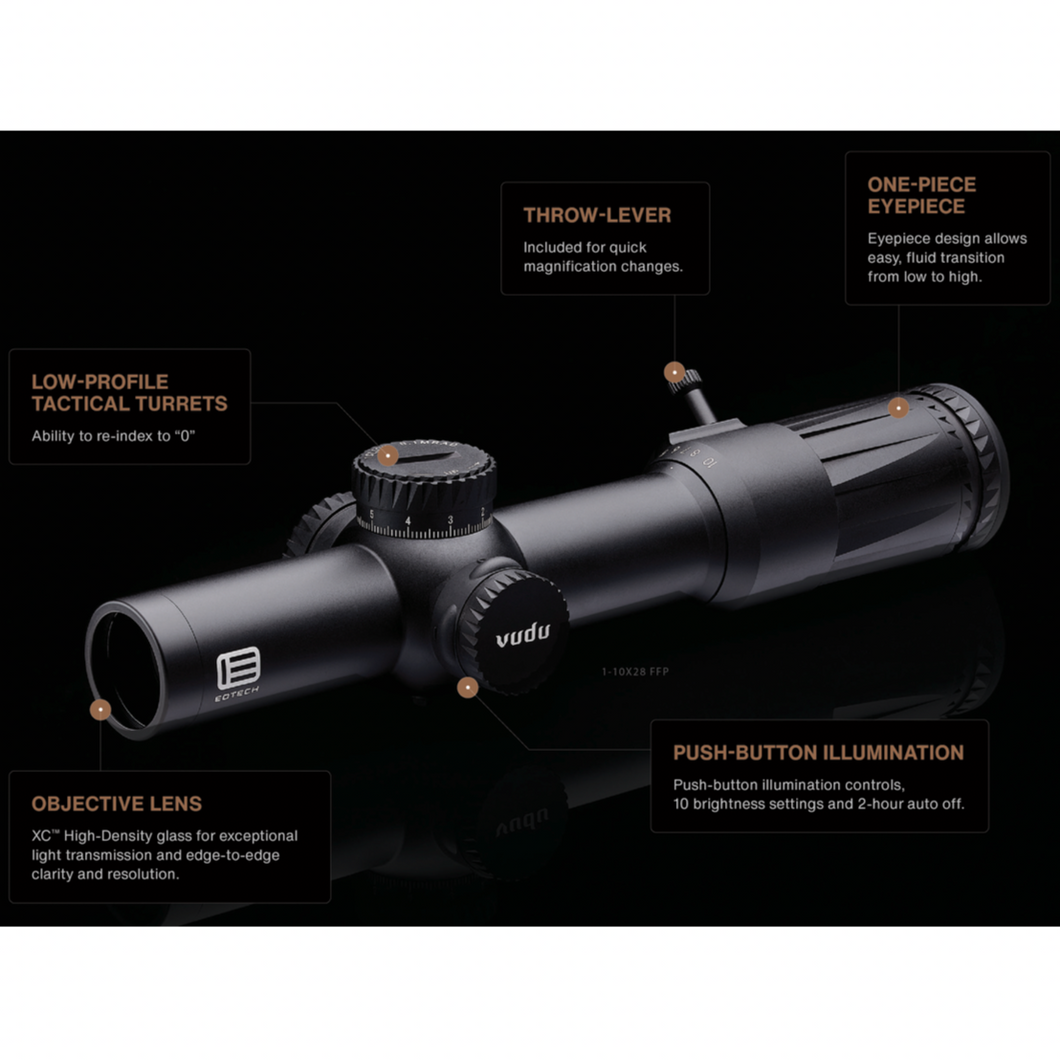

SPECIFICATIONS:

  • Low-Profile Tactical Turrets - Abilit to re-index to "0".
  • Throw-Lever - Included for quick magnification changes.
  • One-Piece Eyepiece - Eye piece design allows easy, fluid transition from low to high.
  • Objective Lens -  XC™ High-Density glass for exceptional light tramsmission and edge-to-edge clarity and resolution.
  • Push-Button Illumination - Push-button illumination controls, 10 brightness settings and 2-hour auto off.

 FIRST FOCAL PLANE:

  • Overall Length: 10.63" (270mm)
  • Weight: 21.3 oz  (603 g)
  • Magnification: 1-10x
  • Tube Diameter: 34mm
  • Objective Diameter: 28mm
  • Power Source: CR2032
  • Eye Relief: 1X: 3.27-3.90" (83-99 mm) / 1X: 3.27-3.90" (83-99 mm)
  • Field-Of-View @ 100 Yards: 1X: 116.6 ft (35.5 m) / 10X: 11.7 ft (3.6 m)
  • Country of Origin: Made in Japan

RETICLE SPECIFICATIONS:

Vudu SR-4 MOA Reticle:

The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.

  • Adjustment Graduation Per Click: 0.25 MOA
  • Adjustment Graduation per Rotation: 40 MOA
  • Total Elevation Travel: 100 MOA
  • Total Windage Travel: 80 MOA

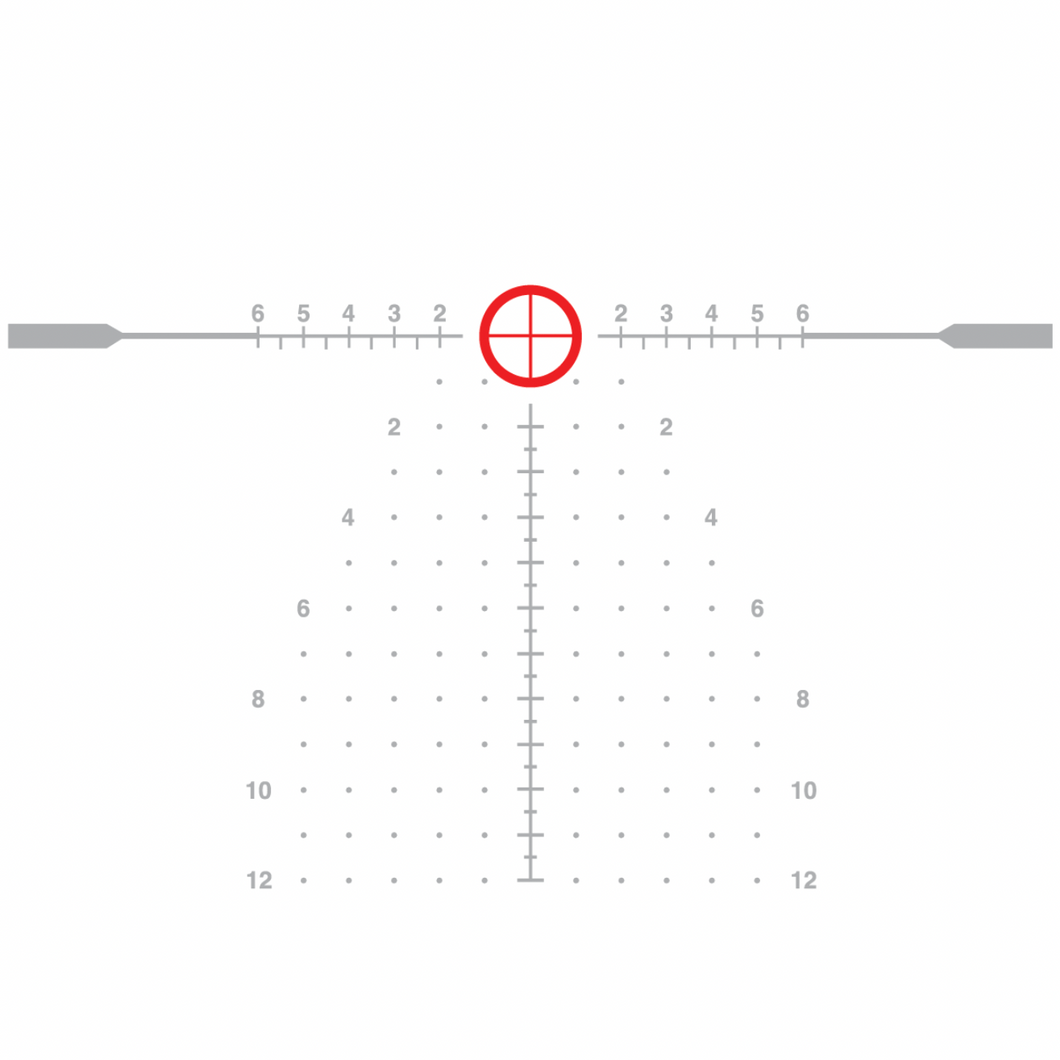

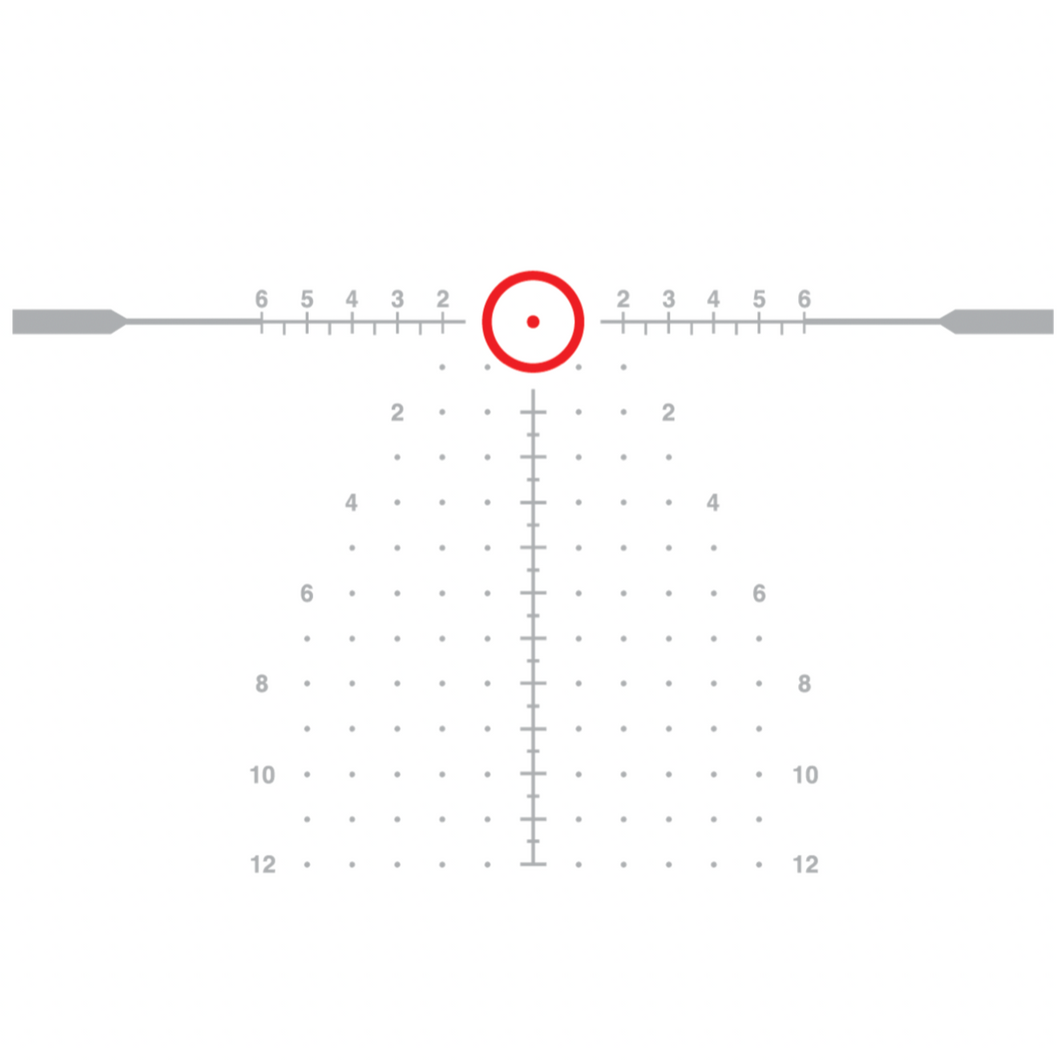

Vudu SR-5 MRAD Reticle:

The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.

  • Adjustment Graduation Per Click: 0.1 MRAD
  • Adjustment Graduation per Rotation: 15 MRAD
  • Total Elevation Travel: 29 MRAD
  • Total Windage Travel: 23 MRAD

Vudu LE-5 MRAD Reticle:

The LE-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision cross-hair and the secondary windage and elevation features allow for precise holds on those longer range shots.

  • Adjustment Graduation Per Click: 0.1 MRAD
  • Adjustment Graduation per Rotation: 15 MRAD
  • Total Elevation Travel: 29 MRAD
  • Total Windage Travel: 23 MRAD

PROP 65 WARNINGS:

This product can expose you to chemicals including (Epichlorohydrin, Phenyl, Hydrazine or Cumene) which are known to the State of California to cause cancer, and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
