3X Magnifier with Adjustable Height Quick Release, Flip-to-Side Mount

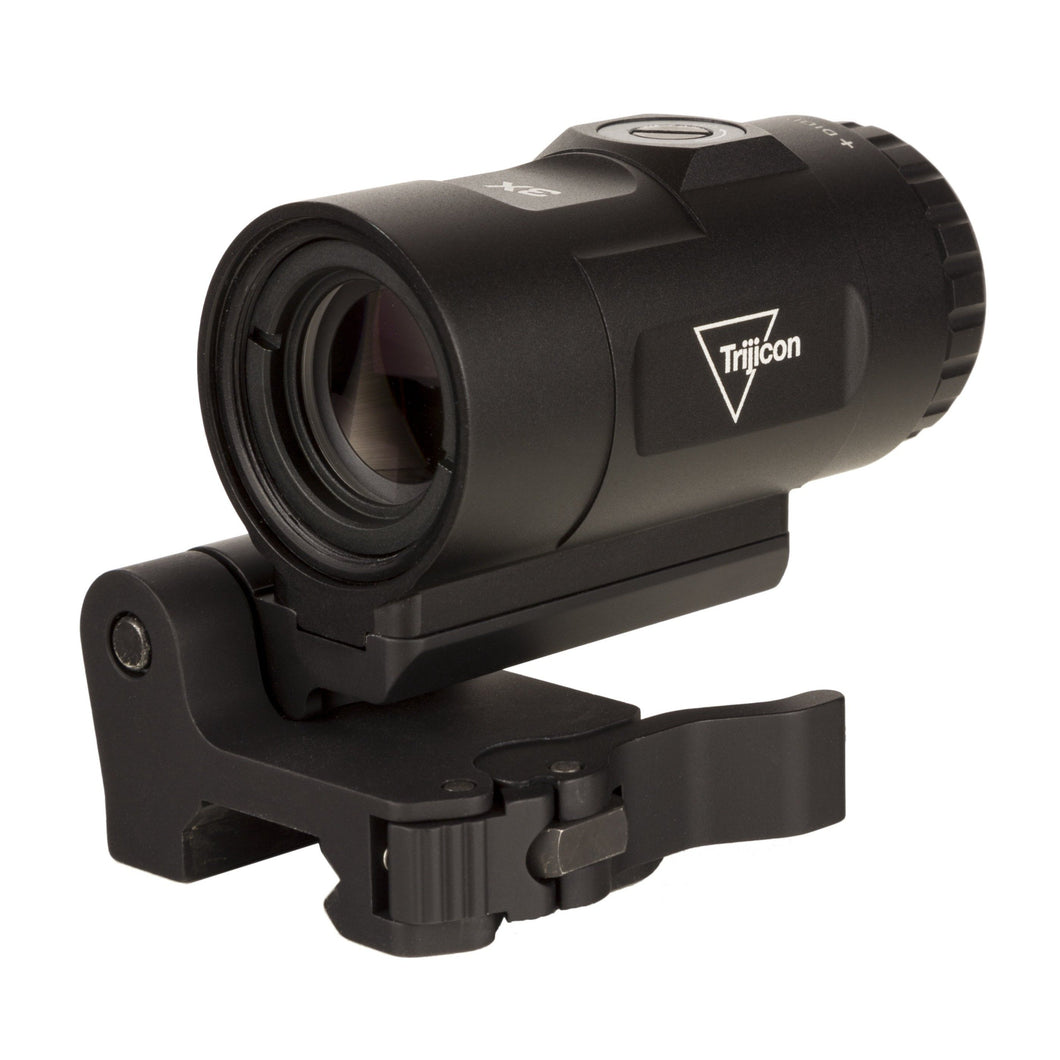

The Trijicon Miniature Rifle Optic (MRO®) HD Magnifier is a 3 power reflex optic magnifier specifically designed to magnify the target and target seen through the MRO HD red dot optic. By magnifying the target the shooter is able to use the crisp dot in the MRO HD to quickly and accurately engage targets at extended distances. The MRO HD Magnifier is short and compact which saves weight and rail space. The design features easy-to-set flush, toolless adjusters that make centering the reticle in the field of view easy. The adjustable diopter allows the user to tune the optical performance to their eyes.
The 3x magnifier also includes a multi position, military-grade flip-to-side quick release levered mount which makes mounting and unmounting the optic from the host platform quick and easy. This mount is also designed to flip into place over the top of back up iron sights commonly used on modern sporting rifles. Each magnifier includes a riser plate and additional fasteners to allow the optic to align with either 1/3rd or Full Co-Witness MRO HD mounts.
Submersion Depth: 33 ft.
Housing Material: Aluminum
Diopter Range: -2.5 / +2
Mount: Adjustable Quick Release Levered, Flip to Side Mount
Field of View (ft): 37.5
Field of View (degrees): 7.2
Exit Pupil: 0.2 in.
Eye Relief: 2.6 in.
Adjustment Range: 60 MOA
Dimensions (LxWxH): 2.9 in. x 1.5 in. x 1.7 in.
Objective Size: 25mm
NOTE: The Trijicon MRO HD Magnifier has a unique footprint and will only work with the Trijicon magnifier mount. Therefore, the magnifer and magnifer mount are only sold as a pair.
